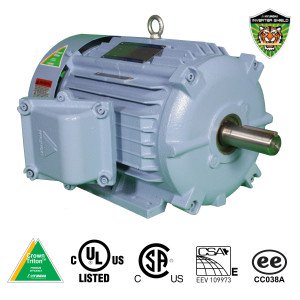

Hyundai Crown Triton Series Explosion Proof Inverter Duty TEXP Enclosure Rigid Base Three Phase Motors 1.5 HP 3600 RPM 143T Frame

Hyundai Crown Triton Series Explosion Proof Inverter Duty TEXP Enclosure Rigid Base Three Phase Motors 1.5 HP 3600 RPM 143T Frame

  • $1,060.00


Product Features:

  • 208-230/460 Volt
  • TEXP enclosure
  • C-Face - Rigid Base
  • Class F insulation with Class N Varnish
  • Premium efficiency
  • 1.15 service factor
  • Class B temperature rise
  • NEMA Design B
  • Inverter shield insulation and inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31 for exceptional corona and transient protection
  • Inverter duty with 1.0 service factor 4:1 CT (constant) / 10:1 CT (intermittent - 1 hour) / 10:1 VT
  • Cast Iron frame and conduit box
  • Suitable for part winding start on low voltage
  • Unique multiple rating system for 40 degrees C and 55 degrees C ambient (T2C at 40 degrees C, T2B at 55 degrees C, T4 when thermostat is connected)
  • Suitable for 50 hz operation with 1.0 service factor
  • Class I, Division 1, Groups C & D, UL Certification
  • CC # 038A
  • CSA Energy Certified

Technical Specs for Model #IXHHI1.5-36-143T

HP: 1.5
RPM: 3600
Voltage: 208-230/460
Frame: 143T
FL Amps (A): 2.0
FL Eff. (%): 84.0
