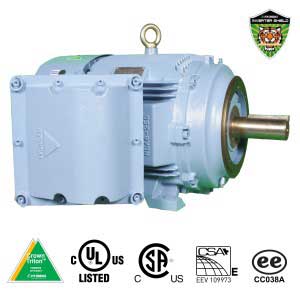

Hyundai Crown Triton Series Explosion Proof Inverter Duty TEXP Enclosure C - Face Rigid Base Three Phase Motors 2 HP 1800 RPM 143TC Frame

Hyundai Crown Triton Series Explosion Proof Inverter Duty TEXP Enclosure C - Face Rigid Base Three Phase Motors 2 HP 1800 RPM 143TC Frame

  • $1,213.00


Product Features:

  • 208-230/460 Volt
  • TEXP enclosure
  • C-Face - Rigid Base
  • Class F insulation with Class N Varnish
  • Premium efficiency
  • 1.15 service factor
  • Class B temperature rise
  • NEMA Design B
  • Inverter shield insulation and inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31 for exceptional corona and transient protection
  • Inverter duty with 1.0 service factor 4:1 CT (constant) / 10:1 CT (intermittent - 1 hour) / 10:1 VT
  • Cast Iron frame and conduit box
  • Suitable for part winding start on low voltage
  • Unique multiple rating system for 40 degrees C and 55 degrees C ambient (T2C at 40 degrees C, T2B at 55 degrees C, T4 when thermostat is connected)
  • Suitable for 50 hz operation with 1.0 service factor
  • Class I, Division 1, Groups C & D, UL Certification
  • CC # 038A
  • CSA Energy Certified

Technical Specs for Model #IXHHI2-18-145TC

HP: 2
RPM: 1800
Voltage: 208-230/460
Frame: 145T
FL Amps (A): 3.0
FL Eff. (%): 86.5
