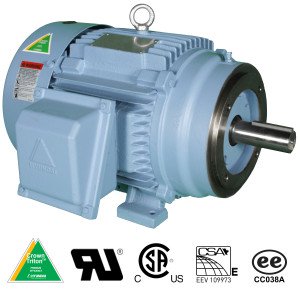

Hyundai Crown Triton Series TEFC Enclosure C-Face Rigid Base Three Phase Motors 3 HP 3600 RPM 182TC Frame

Hyundai Crown Triton Series TEFC Enclosure C-Face Rigid Base Three Phase Motors 3 HP 3600 RPM 182TC Frame

  • $692.00


Product Features:

  • 208-230/460 Volt
  • TEFC enclosure
  • C-Face Rigid Base
  • Class F insulation with Class N Varnish
  • Premium efficiency
  • IP55 degree of protection
  • Dual rated service factor 1.15 for 40 degrees C / 1.0 for 65 degrees C
  • NEMA Design B
  • Inverter ready, 10:1 CT / 20:1 VT
  • Cast iron frame and conduit box
  • Suitable for part winding start on low voltage
  • F2 field mountable
  • Suitable for 50 hz operation with 1.0 service factor
  • Class I, Division 2, Groups A, B, C, D

Technical Specs for Model #HHI3-36-182TC

HP: 3
RPM: 13600
Voltage: 208-230/460
Frame: 182TC
FL Amps (A): 3.8
FL Eff. (%): 86.5
