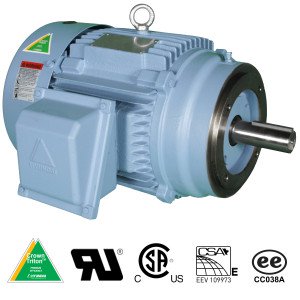

Hyundai Crown Triton Series TEFC Enclosure C-Face Round Body Three Phase Motors 1.5 HP 1800 RPM 145TC Frame
Product Features:
- 208-230/460 Volt
- TEFC enclosure
- C-Face - Round Body
- Class F insulation with Class N Varnish
- Premium efficiency
- IP55 degree of protection
- Dual rated service factor 1.15 for 40 degrees C / 1.0 for 65 degrees C
- NEMA Design B
- Inverter ready, 10:1 CT / 20:1 VT
- Cast iron frame and conduit box
- F2 field mountable
- Suitable for 50 hz operation with 1.0 service factor
- Class I, Division 2, Groups A, B, C, D
Technical Specs for Model #HHI1.5-18-145TCRD
HP: 1.5
RPM: 1800
Voltage: 208-230/460
Frame: 145TC
FL Amps (A): 2.2
FL Eff. (%): 86.5
