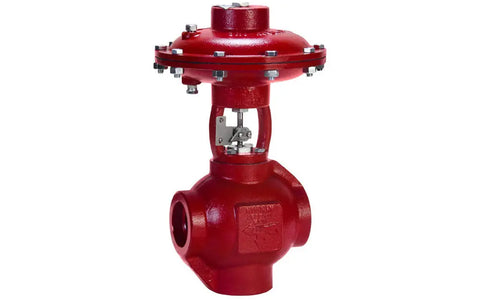

Control Valve/ Metering : ESH
| Connection Size: | 2 " |
| Connection Type: | Socket Weld |
| Body Style: | 3 Way |
| Body Material: | Steel |
| NACE MR0175: | Option Available for NACE MR0175 compliance or certification |
| Trim Size: | 1.5 " |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 3000 psig |
| Max Set Point Pressure: | 3000 psig |
| Operation: | Pneumatic |
| 100% Open Cv of Bottom Port: | 38.1 |
| Catalog Page: | 01:40.1 |
| Face-to-Face Length: | 6.91 " |
| Max Cv: | 27.7 |
| Cf: | 0.7 |
| Weight: | 45 lbs |
