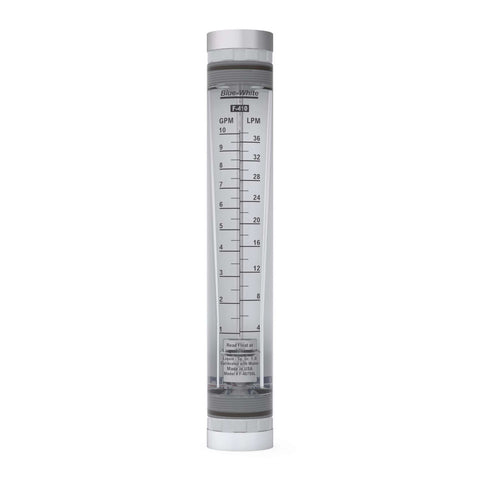

F-410
Features
- Tough machined acrylic meter body, highly polished to a clear finish.
- Direct reading permanent scale.
- White back reflector for easy reading.
- F/NPT adapters with high grade Viton o-ring seals and aluminum “stress ring” thread supports.
- 316 stainless steel rod guided floats.
- Acceptable in direct sunlight applications.
What’s Included:
- Flow meter x1
- Instruction Manual
Specifications
Max. working pressure:
- 150 PSI (10.3 bar) @ 70 F (21 C)
Max. Fluid Temperature:
- 150 F (65 C) @ 0 PSI
Full scale accuracy:
- +/- 5%
Calibration fluid:
- water, specific gravity 1.0
Scale length:
- 5” (127mm)
Environment:
- Acceptable for direct sunlight exposure.
Maximum pressure drop:
- 2 PSI
Approximate shipping wt:
- 2 lb. (.91 kg)
Meter Body:
- Cast Acrylic Rod
Adapters:
- Polypropylene
Guide Rod Holder:
- Polypropylene
O-ring seals:
- FKM
Float:
- Standard Series
- 316SS
Guide Rod:
- Standard Series
- 316SS
