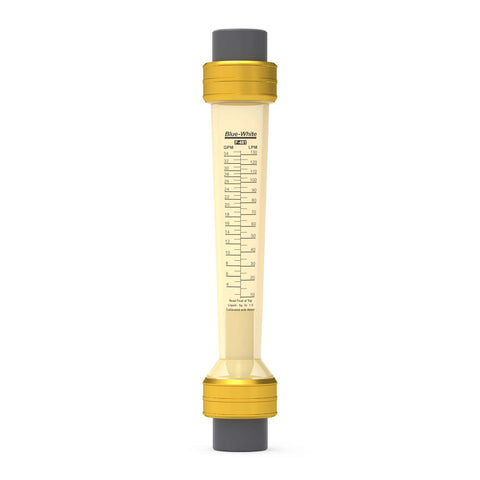

F-461
Features
- For use in UltraPure applications
- No metal in the fluid path
- Rib guided float
- Polysulfone meter body resists high temperatures and pressures
- PTFE float and optional PVC or PVDF adapters for corrosive applications
- Direct reading permanent scale
What’s Included:
- Flowmeter x1
- Instruction Manual
Specifications
Max. Working Pressure:
- 150 psig (10.3 bar) @ 70° F (21° C)
Max. Fluid Temperature:
- PVDF adapters: 210˚F / 98˚C @ 0 PSI
- PVC adapters: 130˚F / 54˚C @ 0 PSI
Full Scale Accuracy:
- +/- 2 ½%
Meter Body Material:
- Polysulfone
Adapter Material:
- Female NPT (1”): PVDF or PVC
Union Nuts:
- Anodized Aluminum (optional PVC)
Float Material:
- PTFE
O-ring Material:
- FKM
Max Pressure Drop:
- 2 PSI
Approx. Shipping Weight:
- 3 lb. (1.4 kg)
