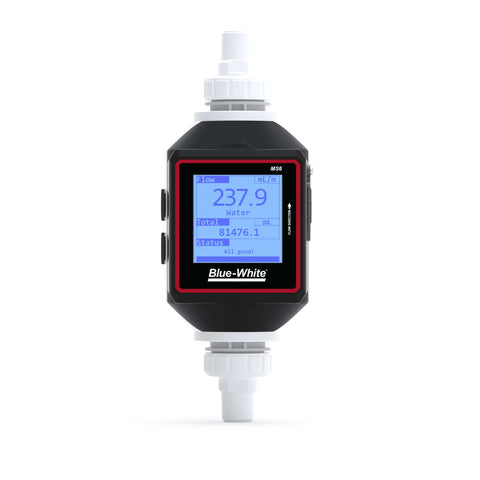

MS6

Benefits:

• Flow Range 1: 10 – 5,000 mL/min (0.158 – 79.2 GPH)
• Flow Range 2: 100 – 10,000 mL/min (1.58 – 158.5 GPH)
• Sensor is NSF 61 Listed
• Inline pipe fittings for easy installation
• Configurable via Blue-Central® desktop software
• Isolated 4-20 mA output – fully configurable
• 0 – 1,000Hz Pulse output – fully configurable
• User configurable flow rate and total set-point triggers
• Flow-rate readings as low as 10 mL/min
• Included wetted end fittings allow for more than 14 inlet and outlet configurations
• True unions for ease of maintenance
• Wetted components constructed out of PVDF and PEEK
• Quick visual inspection with built in status LED light
• Process control via configurable solid state relay, which can be configured to close or open trigger at a flow-rate or to flow total for batching operation
