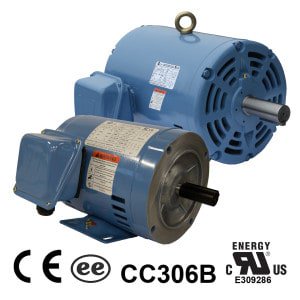

Worldwide Open Drip Proof (ODP) Rigid Base Three-Phase Motors 1 HP 3600 RPM 143T Frame

Worldwide Open Drip Proof (ODP) Rigid Base Three-Phase Motors 1 HP 3600 RPM 143T Frame

  • $377.88


Product Features:

  • 208-230/460 HP, 60 Hz
  • 190/380 volt, 50 HZ
  • ODP enclosure (rolled steel enclosure)
  • IP23 degree of protection
  • 1.15 service factor (1.0 SF for 50 Hz applications)
  • Class F insulation
  • Rigid Base
  • Premium efficiency
  •  Class B temperature rise
  • Inverter duty, 10:1 CT / 20:1 VT (1.0 service factor)
  • Inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31
  • Pre-drilled and tapped drive endbells on 182T frame and up to accept Inpro Current Diverter Grounding Rings; No machining required, simple and easy installation
  • Exclusive double VPI process for winding insulation
  • Double drilled feet to accommodate mounting flexibility

Technical Specs for Model #ODP1-36-143T

HP: 1
RPM: 3600
Voltage: 208-230/460
Frame: 143T
FL Amps (A): 1.35
FL Eff. (%): 77.0
