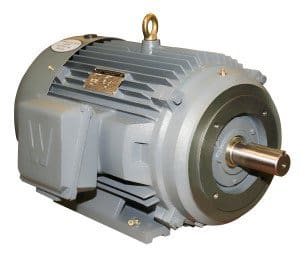

Worldwide Severe Duty TEFC Enclosure C-Face Rigid Base Three-Phase Motors 3 HP 1800 RPM 182TC Frame
Product Features:
- 1-250 HP
- 208-230/460 Volt
- 200/400 volt 50 Hz
- C-Face - rigid base
- TEFC enclosure - IP55 degree of protection
- CSA Certified fo Class I, Division 2, Groups A, B, C, D
- Class F insulation
- Premium efficiency
- 1.25 service factor (1.0 SF for 50 Hz applications)
- Inverter duty, 10:1 CT / 20:1 VT (1.0 service factor)
- Dual rated for 50/60 Hz
- Oversized bearings
- Metal clad V type sealing rings
- Spike resistant inverter grade magnet wire per NEMA MGA1 part 31
Technical Specs for Model #PEWWE3-18-182TC
HP: 3
RPM: 1800
Voltage: 208-230/460
Frame: 182TC
FL Amps (A): 4.0
FL Eff. (%): 90.3
