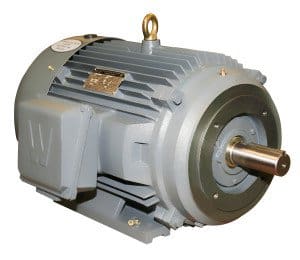

Worldwide Severe Duty TEFC Enclosure C-Face Rigid Base Three-Phase Motors 7.5 HP 3600 RPM 184TC Frame

Worldwide Severe Duty TEFC Enclosure C-Face Rigid Base Three-Phase Motors 7.5 HP 3600 RPM 184TC Frame

  • $1,405.08


Product Features:

  • 1-250 HP
  • 208-230/460 Volt
  • 200/400 volt 50 Hz
  • C-Face - rigid base
  • TEFC enclosure - IP55 degree of protection
  • CSA Certified fo Class I, Division 2, Groups A, B, C, D
  • Class F insulation
  • Premium efficiency
  • 1.25 service factor (1.0 SF for 50 Hz applications)
  • Inverter duty, 10:1 CT / 20:1 VT (1.0 service factor)
  • Dual rated for 50/60 Hz
  • Oversized bearings
  • Metal clad V type sealing rings
  • Spike resistant inverter grade magnet wire per NEMA MGA1 part 31

Technical Specs for Model #PEWWE7.5-36-184TC

HP: 7.5
RPM: 3600
Voltage: 208-230/460
Frame: 184TC
FL Amps (A): 8.8
FL Eff. (%): 90.8
