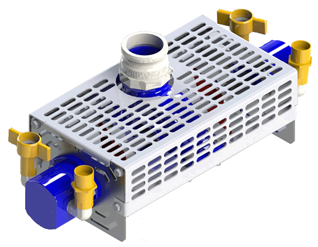

Fast Flow Model FF-IND-3DAGTM
The Fast Flow 3” severe service pump is built to be a survivor. All critical components of the pump are upgraded, including a heat-treated ductile iron impeller & volutes, hardened 17-4 drive shaft, and stainless couplings. The two efficient hydraulic gear motors are self lubricated by the hydraulic fluid powering the pump. There are absolutely no shaft bearings, no wear plates, no grease fittings, no internal impeller to housing contact, and no mechanical seals to replace in the pump.
Fast Facts
|
|
Weight:
|
72 lbs
|
Max Water Flow:
|
600 GPM
|
Vertical Head:
|
300 Feet Max
|
Operating PSI:
|
2250 to 3300 PSI
|
Hydraulic Flow:
|
8 to 21 GPM
|
Power Source:
|
Hydraulic Driven
|
Material:
|
Ductile Iron
|
Discharge:
|
3" Male Cam Lock
|
Dimensions:
|
29" x 10" x 12"
|
Hydraulic Oil:
|
AW-32 or AW-46
|
Competitive Advantages
• Designed for severe service applications
• Handles abrasive solids pumping applications
• Pumps 20 pound per gallon oilfield slurries
• Anti-clog twin motor, double suction technology
• Lightweight and portable at 72 lbs
• Durable ductile iron for long life
• Aluminum or stainless steel frames available
• Field service in under an hour
• Features top lifting ring and debris cage
• Optional high strength twin agitators
• Twin hydraulic motors self lubricate
