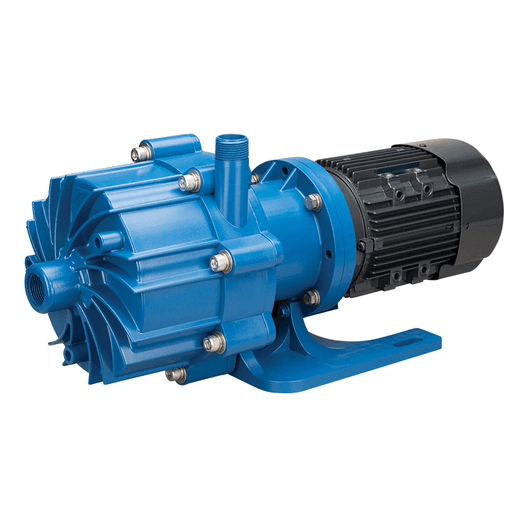

Finish Thompson MSDB 2
| Suction Port Size | 1 in |
|---|---|
| Discharge Port Size | 1 in |
| Connection Types | NPT, BSP, Flange |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 135 psi (9.3 bar) |
| @3500 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 1 to 69.8 gpm | 0.23 to 15.7 m3/h |
| Maximum Head | 204 ft | 43.3 m |
| Power Range** | .75 to 4.9 hp | .31 to 2.2 kW |
| *Based on 1.0 specific gravity | ||
| Type | Multi-Stage Sealless Mag Drive |
|---|---|
| Configuration | Horizontal |
| Construction Materials | Polypropylene or PVDF |
| O-Ring Materials | FKM, EPDM, Simriz®, or Kalrez® |
| Bushing Materials | Carbon, glass-filled PTFE, Alumina Ceramic, silicon carbide |
| Polypropylene | PVDF | |
|---|---|---|
| Maximum Temperature: | 180º F (82º C) | 220º F (104º C) |
