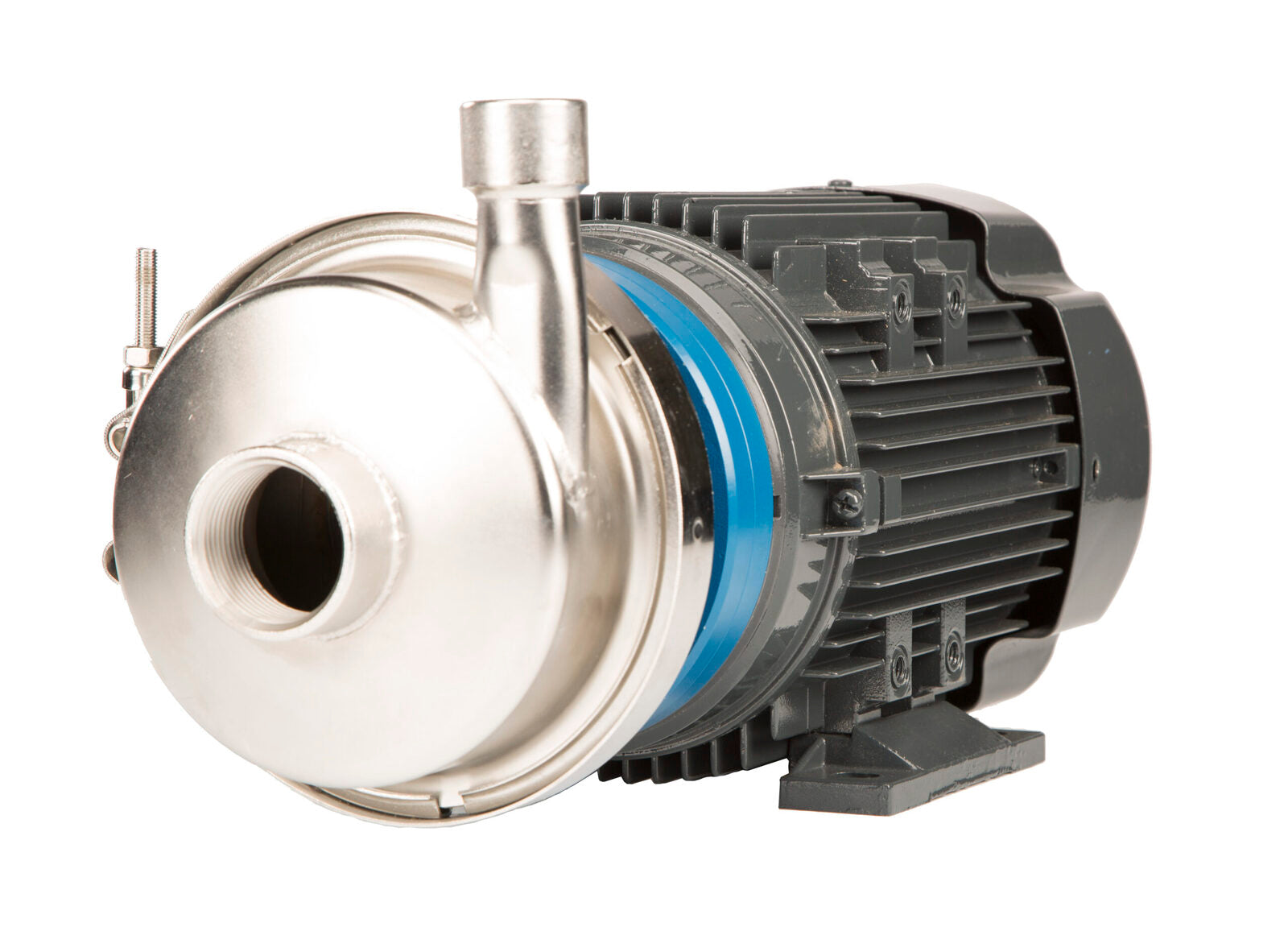

Finish Thompson Sealed Pumps AC5
|
Port Sizes (Suction x Discharge) & Connection Types |
1-1/2 in x 1-1/4 in NPT or BSP 1-1/4 in x 3/4 in NPT or BSP 2 in x 1-1/2 in NPT or BSP 1-1/4 in x 3/4 in ANSI 150# flange 1-1/2 in x 1 in ANSI 150# flange 2 in x 1-1/2 in ANSI 150# flange 1-1/2 x 1 electropolished tri-clamps 1-1/2 x 1-1/2 electropolished tri-clamps 2 x 1-1/2 electropolished tri-clamps |
|---|---|
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 5 to 145 gpm | 1.14 to 26.3 m3/h |
| Maximum Head | 88.5 ft | 19 m |
| Power Range** | 0.5 to 3.1 hp | 0.21 to 1 kW |
| Type | Stainless Steel Mechanically Sealed |
|---|---|
| Configuration | Horizontal |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, Buna, or PTFE Encapsulated Silicone |
| Seal Type | Bellows Type 21 |
| Seal Materials | Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez® |
