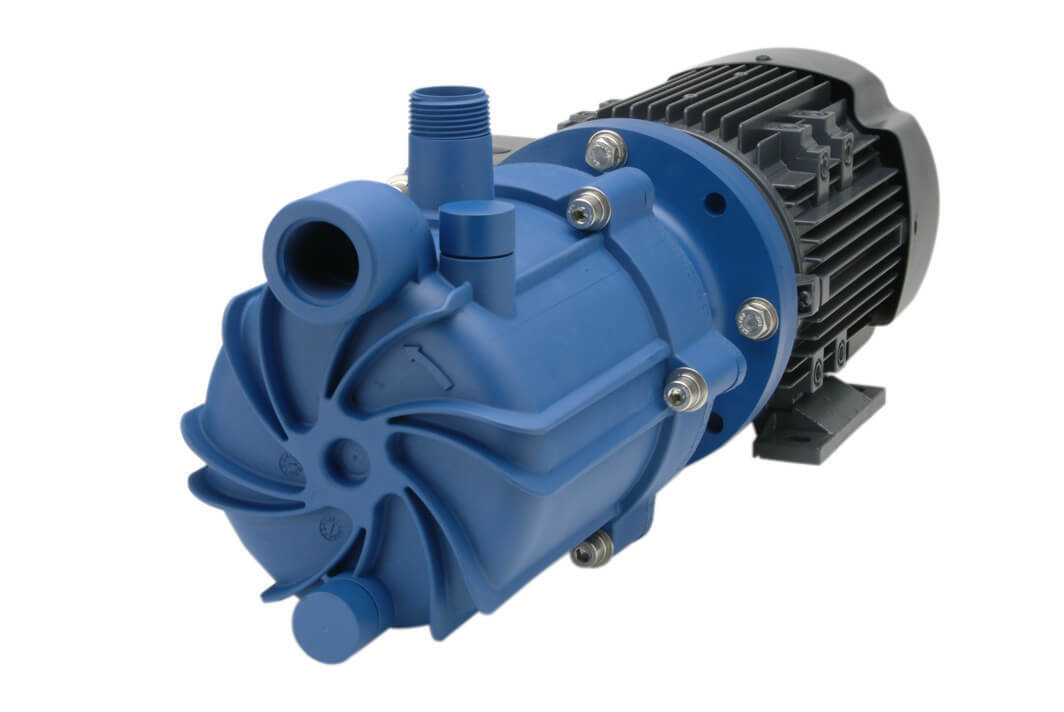

Finish Thompson SP11

Suction Port Size    1.5 in
Discharge Port Size    1.5 in
Connection Types    NPT, BSP, Flange, or Union
Maximum Specific Gravity    over 1.8
Maximum Working Pressure     90 psi (6.2 bar)

                          @3450 RPM    @2900 RPM
Flow Range*    4 to 104 gpm    0.9 to 24 m3/h
Maximum Head    68 ft    21.3 m
Power Range**    0.5 to 1.86 hp    0.46 to 1.59 kW

Type    Self-Priming Sealless Mag Drive
Configuration    Horizontal
Construction Materials    Polypropylene or PVDF
O-Ring Materials    FKM, EPDM, Simriz®, or Kalrez®
Bushing Materials    Carbon, PTFE, Alumina Ceramic, or SiC
Shaft Materials    Ceramic, Hastelloy® C, or SiC

                                              Polypropylene    PVDF
Maximum Temperature:    180º F (82º C)    220º F (104º C)
