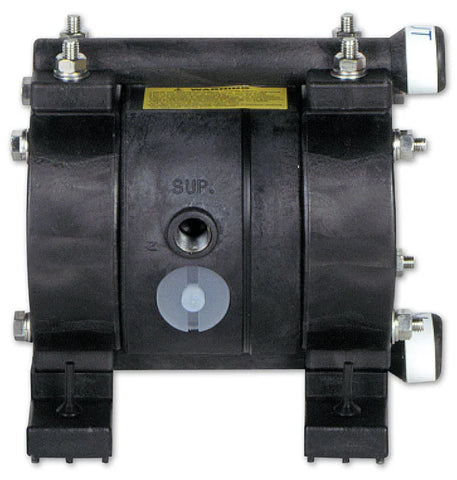

NDP-5FPT
| 3.4 Gallons/Minute Max. | |
| 1/4" NPT Fluid Port |
| Intake & Discharge Connection | 1/4" Female NPT |
| Air Inlet | 1/4" Female NPT (includes ball valve) |
| Air Exhaust | 3/8" Female NPT (includes silencer) |
| Air Supply Pressure (All Models) | 20 to 100 PSI (1.4 to 7 kgf/cm2) |
| Discharge Volume Per Cycle | 0.0085 gallons (35 cc) |
| Maximum Cycles Per Minute | All diaphragms: 400 |
| Maximum Dry Suction Lift | 5-feet |
| Air Motor | Standard: Ryton® Air Motor |
| Air Exhaust | 3/8" Female NPT Identified as EXH II (includes internal silencer)1 |
1threaded port for external exhaust applications.
Maximum Liquid Temperature - Fitted with PTFE diaphragms only
| Groundable Acetal 180F (82C) |
| Polypropylene (PPG) 180F (82C) |
| Kynar® (PVDF) 212F (100C) |
| Aluminum (ADC-12) 212F (100C) |
| Stainless Steel (316) 212F (100C) |
