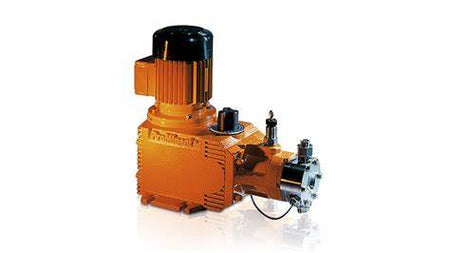

Prominent Hydro/ 3 API 675

Please contact us for price.

You can also reach out to us at 225-454-0860.

The Hydro/3 with a single head is capable of 53.1 gph max flow rate and max pressure of 928 psi.

Multi-layer diaphragm (PTFE) with rupture warning system
Integrated hydraulic relief valve with ventilation
Metering reproducibility is better than ± 1% in the 10 - 100% stroke volume range under defined conditions and with proper installation.
The modular construction with single and double head versions permits a wide range of applications, with the double head designs (boxer principle) being operated in push-pull mode
It is possible to combine up to 5 metering units, even with different pump capacities, in multiple pump systems
5 different gear ratios are available
API 675 requirement full-motion drive and automatic bleeding
