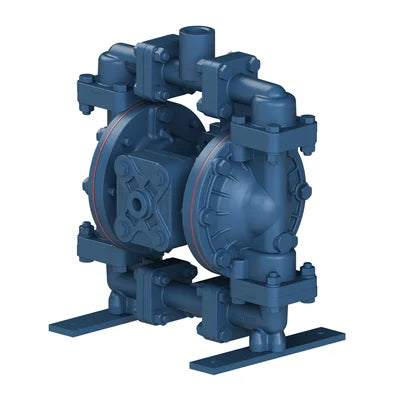

S05 Metallic ½" AODD – Ball Valve Pump
| Port Size | ½" NPT (Internal) or ½" BSP (Tapered) ½" Raised Face 150# ANSI Flanges - Stainless Steel ONLY |
| Capacity | 0 to 15 gpm (56 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to .125" (3 mm) |
| Heads Up To | 125 psi or 298 ft. of water (8.6 bar or 86 meters) |
| Displacement/Stroke | .026 gallons (.098 liters) |
| Max Operating Pressure | 125 psi (8.6 bar) metallic center & 100 psi (7 bar) non-metallic center |
|
Shipping Weight Aluminum Stainless Steel |
15 lbs (7 kg) 21 lbs (10 kg) |
