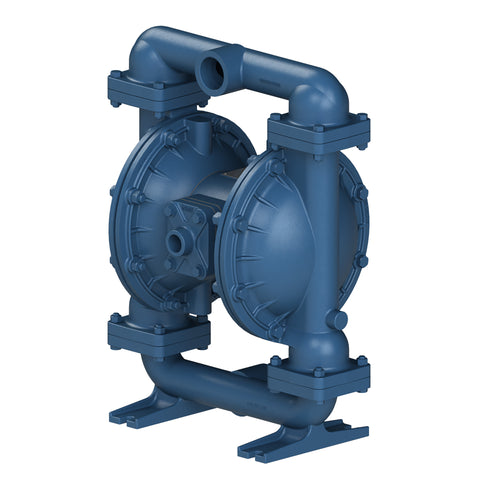

S15 Metallic 1½" AODD – Ball Valve Pump
| Port Size | 1½" NPT (Internal) 1½" BSP (Tapered) 1½" ANSI 150# Raised Face Flanges |
| Capacity | 0 to 106 gpm (401 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to ¼" (6 mm) |
| Heads Up To | 125 psi or 289 ft of water (8.6 bar or 88 meters) |
| Displacement/Stroke | .41 gallons (1.55 liters) |
| Max Operating Pressure | 125 psi (8.6 bar) |
|
Shipping Weight Aluminum Cast Iron Stainless Steel |
53 lbs (24 kg) 93 lbs (42 kg) 95 lbs (43 kg) |
