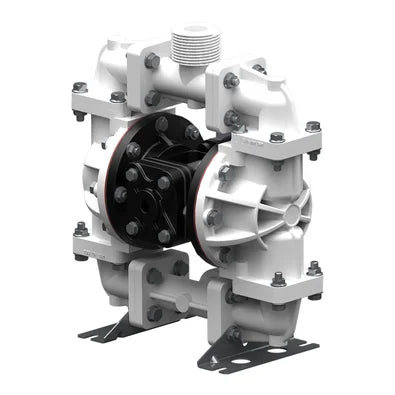

S07 Non-Metallic ¾" AODD – Ball Valve Pump
| Port Size | ¾" NPT (Internal) or ¾" BSP (Tapered) 1½” NPT (External) or 1½" BSP (Tapered) |
| Capacity | 0 to 23 gpm (87 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to .15" (4 mm) |
| Heads Up To | 100 psi or 231 ft. of water (7 bar or 70 meters) |
| Displacement/Stroke | .026 gallons (.098 liters) |
| Max Operating Pressure | 100 psi (7 bar) |
|
Shipping Weight Polypropylene PVDF Nylon |
17-21 lbs (8-9.5 kg) 21 lbs (9.5 kg) 18 lbs (9 kg) |
