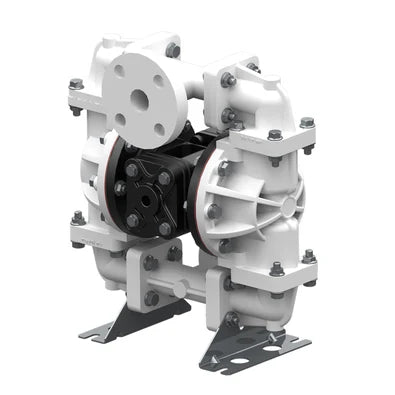

S10 Non-Metallic 1" AODD – Ball Valve Pump
| Port Size | 1" ANSI Flange |
| Capacity | 0 to 23 gpm (87 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to .15" (4 mm) |
| Heads Up To | 100 psi or 231 ft. of water (7 bar or 70 meters) |
| Displacement/Stroke | .026 gallons (.098 liters) |
| Max Operating Pressure | 100 psi (7 bar) |
|
Shipping Weight Polypropylene PVDF Nylon |
19 lbs (9 kg) 23 lbs (10 kg) 20 lbs (9 kg) |
