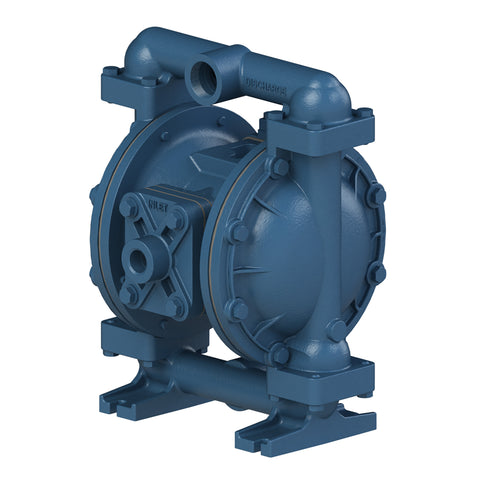

S1F Metallic 1" AODD – Ball Valve Pump
| Port Size | 1" NPT (Internal) 1" BSP (Tapered) 1" ANSI 150# Raised Face Flanges |
| Capacity | 0 to 45 gpm (170 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to ¼" (6 mm) |
| Heads Up To | 125 psi or 289 ft of water (8.6 bar or 88 meters) |
| Displacement/Stroke | 0.11 gallons (0.41 liters) |
| Max Operating Pressure | 125 psi (8.6 bar) |
|
Shipping Weight Aluminum Cast Iron Stainless Steel |
28 lbs (13 kg) 46 lbs (21 kg) 43 lbs (20 kg) |
