Specs

HP: 5

Voltage:  460, 3ph-60Hz

Rated Amps: 7

Discharge Connection: 3" NPT-M w/ 4" NPT-F Discharge

Max Solids: 1.6"

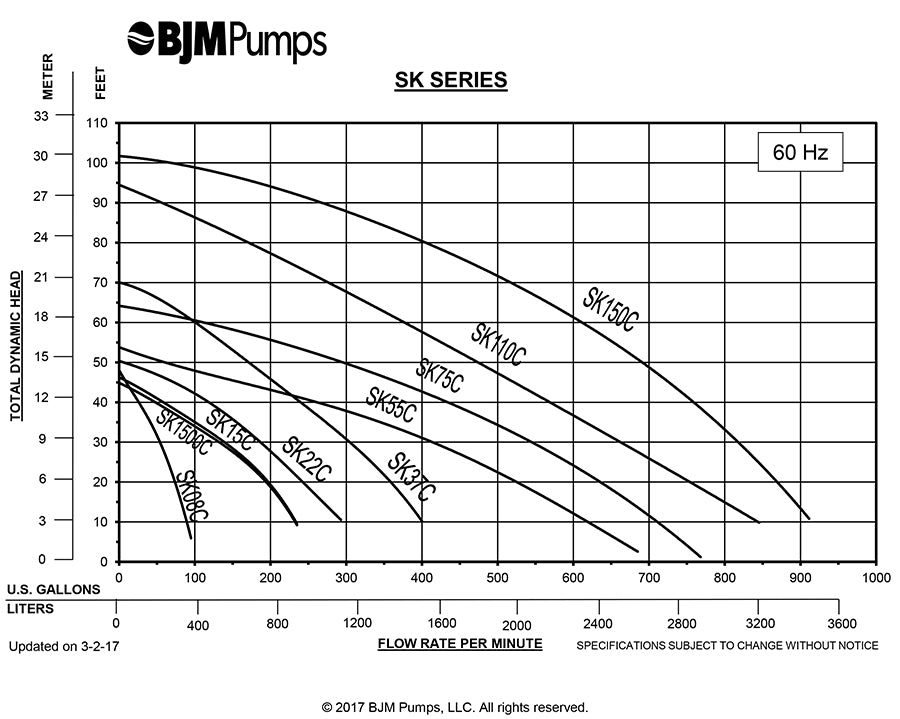

Max Head: 62'

Max GPM: 360

Phase: 3

Features

• 304SS Motor Housing allows for superior abrasion resistance and will not wear out like aluminum motor housings when pumping sandy water.
• Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
• Winding protection and (NEMA) Class F motor insulation allows motor temperature to raise to 230°F, superior to pumps with Class A and B insulation. Automatic switch turns pump motor off if temperature and/or amp draw raises too high. When the motor cools the switch will automatically reset and the pump will turn back on.
• Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components.
• Standard 33ft. power cord.
