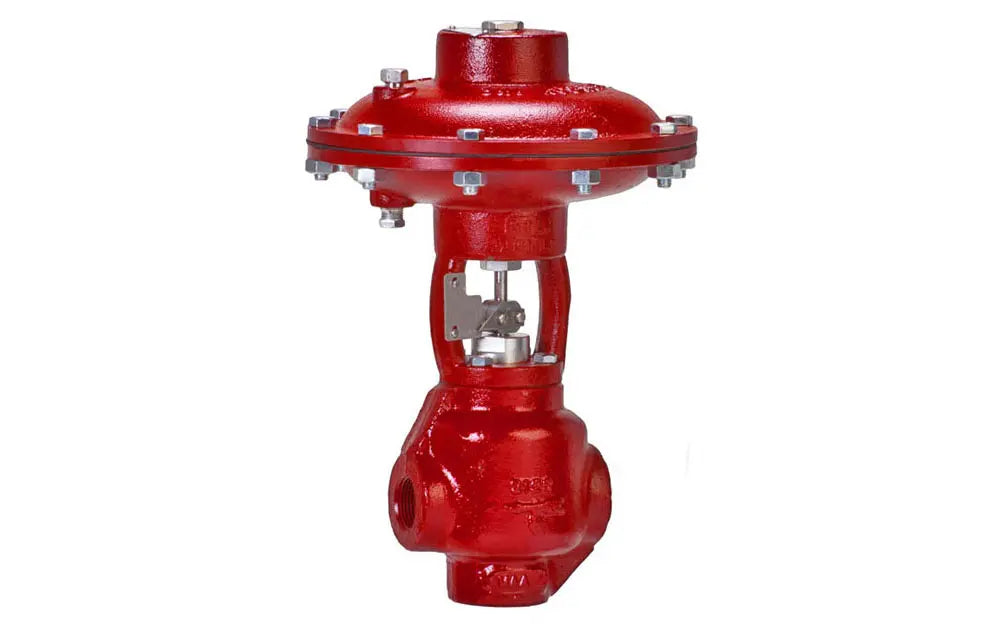

Control Valve/ 3 Way : ESD
Couldn't load pickup availability
Need Parts for this product?
Call (225)-454-0860 now for support on replacement parts
Fast Shipping
100% secure payments
Industry leading quality
Ask an expert!
| Connection Size: | 1 " |
| Connection Type: | Female NPT |
| Body Style: | 3 Way |
| Body Material: | Steel |
| NACE MR0175: | Option Available for NACE MR0175 compliance or certification |
| Trim Size: | 0.817 " |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 3000 psig |
| Max Set Point Pressure: | 3000 psig |
| Operation: | Pneumatic |
| 100% Open Cv of Bottom Port: | 13.8 |
| Catalog Page: | 01:40.1 |
| Face-to-Face Length: | 5.16 " |
| Max Cv: | 8.3 |
| Cf: | 0.7 |
| Weight: | 33 lbs |
