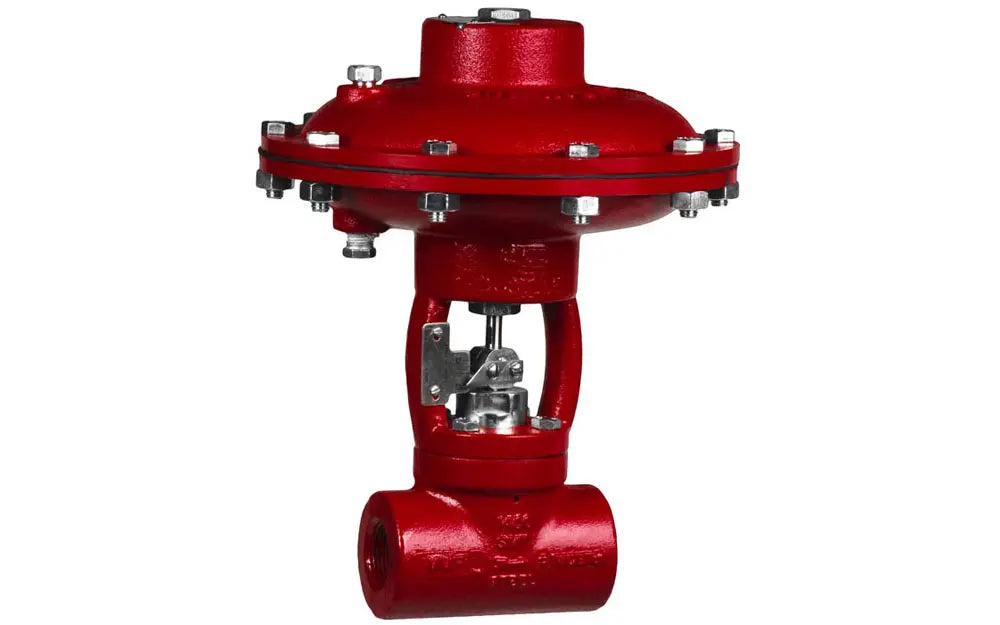

Control Valve/ Stem Guided : EAI
| Connection Size: | 1 " |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Steel |
| NACE MR0175: | Option Available for NACE MR0175 compliance or certification |
| Trim Size: | 0.5 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class IV |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 4000 psig |
| Actuator Spring Nominal Pressure: | 30 psig |
| Max Supply Gas Pressure: | 45 psig |
| Fail Position: | Closed - Field Reversible |
| Operation: | Pneumatic |
| Catalog Page: | 01:10.1 |
| Face-to-Face Length: | 4.44 " |
| Max Cv: | 5.7 |
| Cf: | 0.94 |
| Weight: | 28 lbs |
