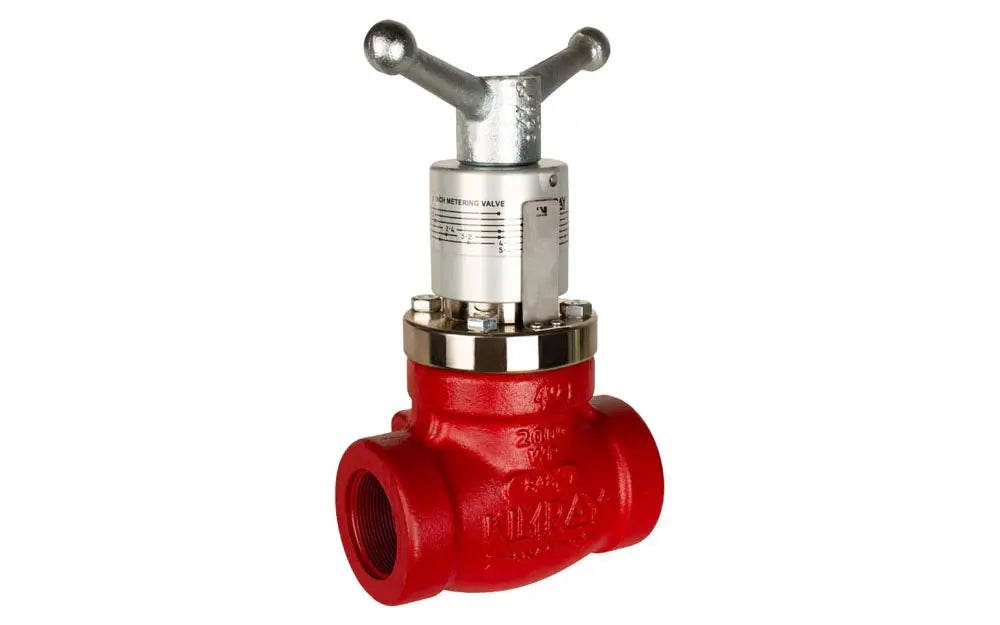

Control Valve/ Metering : EEN
| Connection Size: | 2 " |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Steel |
| NACE MR0175: | Option Available for NACE MR0175 compliance or certification |
| Trim Size: | 0.625 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class IV |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 2000 psig |
| Operation: | Manual |
| Catalog Page: | 01:70.1 |
| Face-to-Face Length: | 6.563 " |
| Max Cv: | 10.76 |
| Cf: | 0.58 |
| Weight: | 28 lbs |
