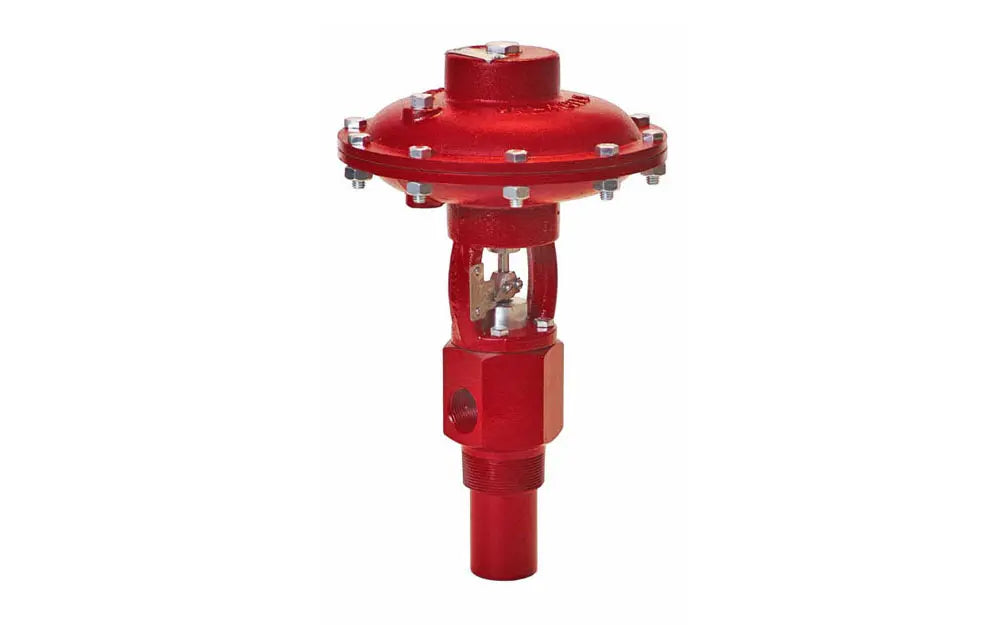

Control Valve/ Metering : EBA
| Connection Size: | 1 " |
| Connection Type: | Female NPT |
| Body Style: | Stinger |
| Body Material: | Ductile |
| NACE MR0175: | Option Available for NACE MR0175 compliance or certification |
| Trim Size: | 0.25 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class IV |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 4000 psig |
| Operation: | Pneumatic |
| Catalog Page: | 01:30.1 |
| Max Cv: | 2.11 |
| Cf: | 0.72 |
| Weight: | 32 lbs |
