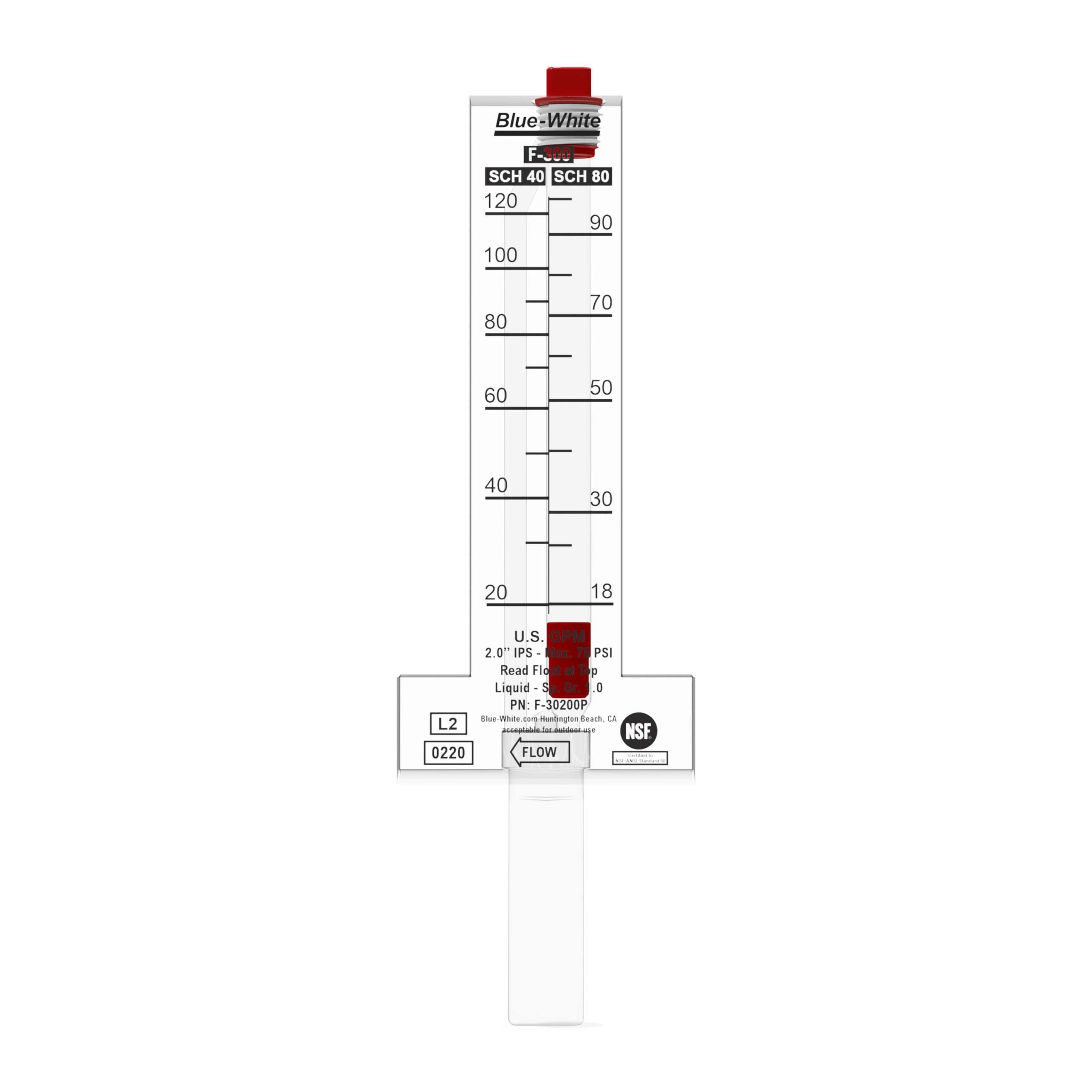

F-300
Horizontal Installation:
- 1″, 1.25″, 1.5″, 2″, 2.5″, 3″, 4″, 6″, 8″
Vertical Installation:
- 1½″, 2″
Max. Working Pressure:
- 75 PSI (5.17 bar) @ 70˚F (21˚C)
Max. Fluid Temperature:
- 190˚F / 88˚C @ 0 PSI
Full Scale Accuracy:
- +/- 5% (L2 Pipe sizes: 1”, 1.25”, 1.5” and 2”)
- +/- 10% (L3 Pipe sizes: 2.5”, 3”, 4”, 6”, and 8”)
Meter Body Material:
- Acrylic
Gasket Material:
- Neoprene
Float Material:
- PVDF
Connection Type:
- Saddle
Pipe Capability:
- PVC Schedule 40 and Schedule 80
Approx. Shipping Weight:
- 1” to 4” Pipe: 1 lb. (.454kg)
- 6” and 8” Pipe: 2 lb. (.907 kg)
