Blue-White

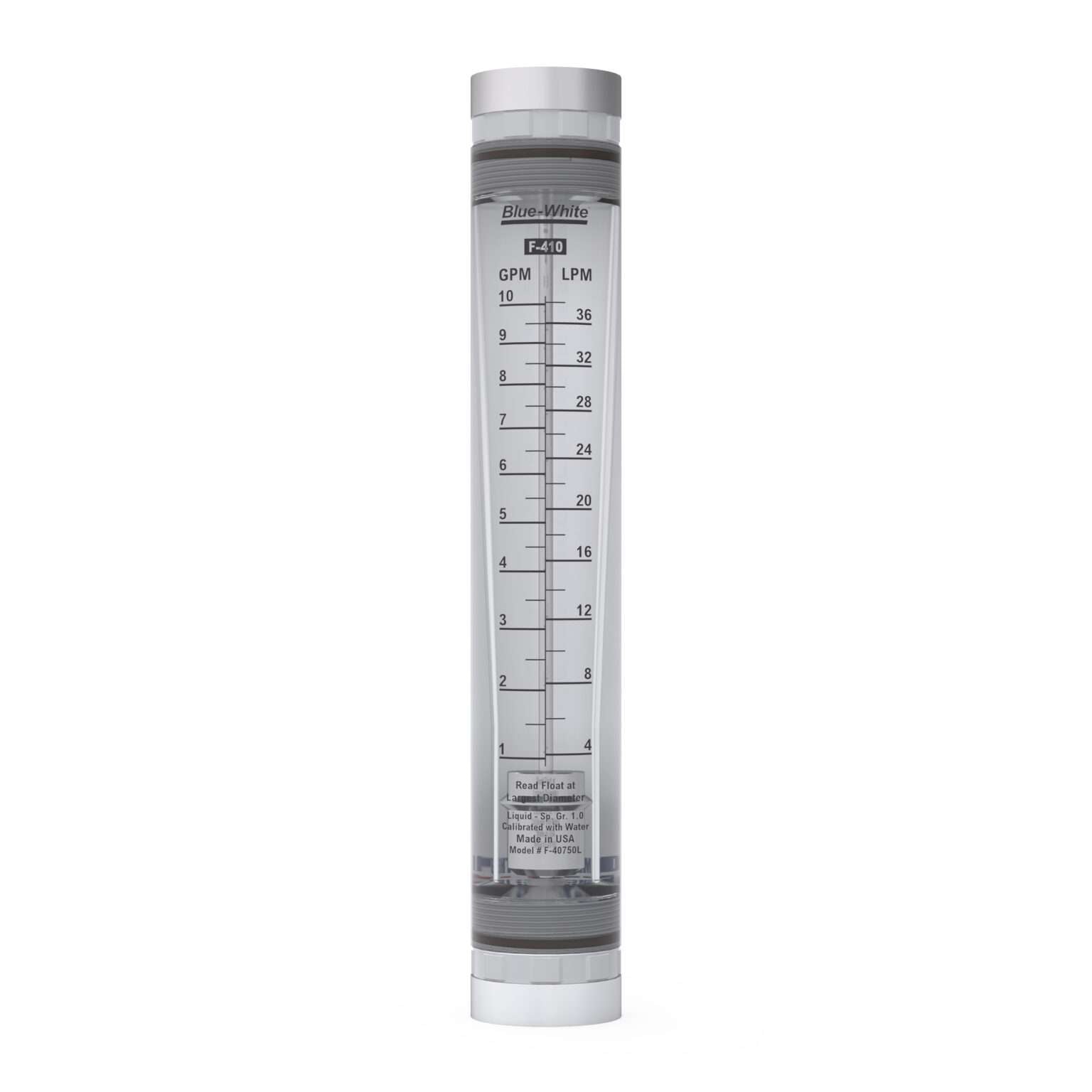

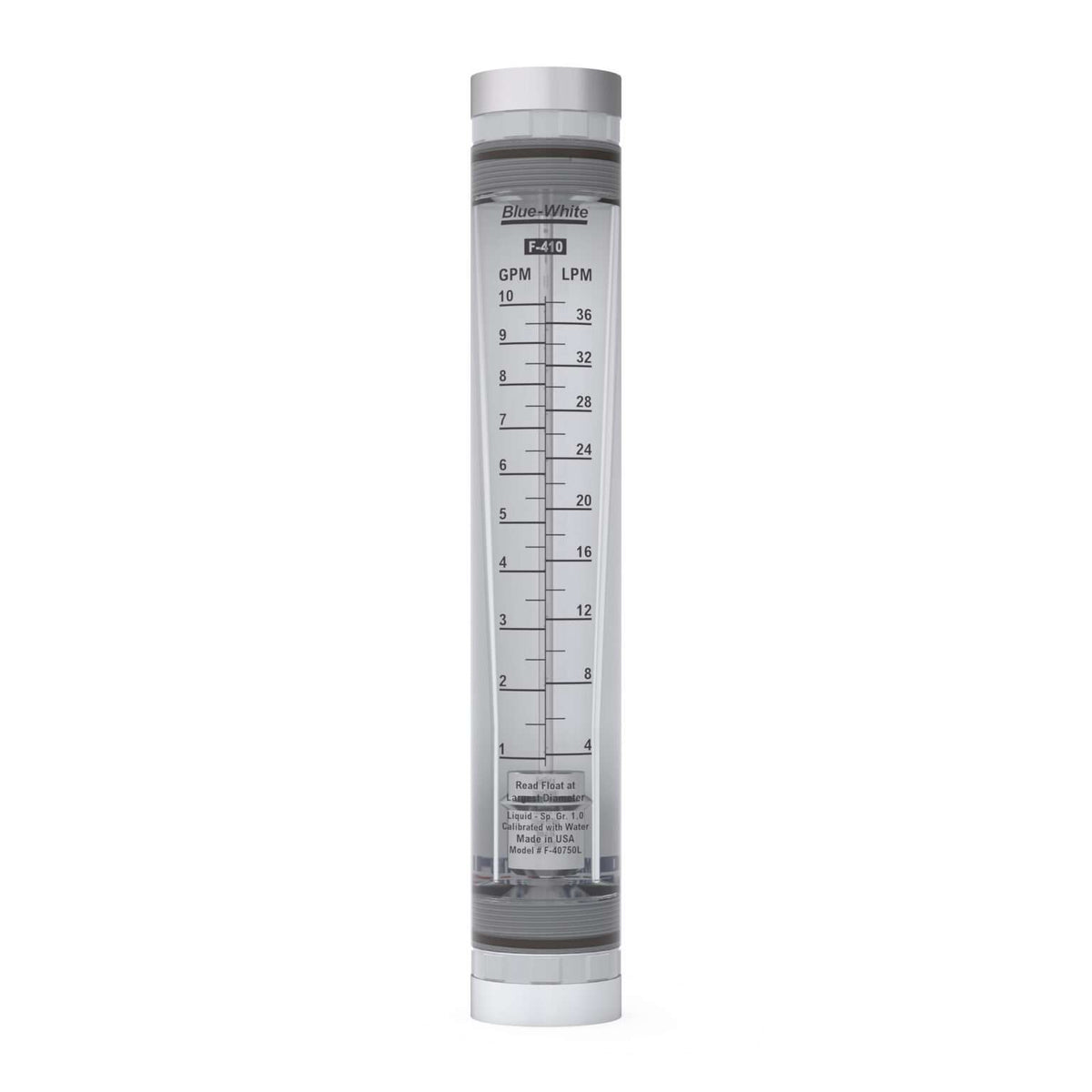

F-410

(0)
Call (225)-454-0860 to confirm stock
Call for pricing

Need Parts for this product?

Call (225)-454-0860 now for support on replacement parts

Fast Shipping
100% secure payments
Industry leading quality

Ask an expert!

Email (225)-454-0860

Features

  • Tough machined acrylic meter body, highly polished to a clear finish.
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • F/NPT adapters with high grade Viton o-ring seals and aluminum “stress ring” thread supports.
  • 316 stainless steel rod guided floats.
  • Acceptable in direct sunlight applications.
What’s Included:
  • Flow meter x1
  • Instruction Manual

Specifications

Max. working pressure:
  • 150 PSI (10.3 bar) @ 70 F (21 C)
Max. Fluid Temperature:
  • 150 F (65 C) @ 0 PSI
Full scale accuracy:
  • +/- 5%
Calibration fluid:
  • water, specific gravity 1.0
Scale length:
  • 5” (127mm)
Environment:
  • Acceptable for direct sunlight exposure.
Maximum pressure drop:
  • 2 PSI
Approximate shipping wt:
  • 2 lb. (.91 kg)
Meter Body:
  • Cast Acrylic Rod
Adapters:
  • Polypropylene
Guide Rod Holder:
  • Polypropylene
O-ring seals:
  • FKM
Float:
  • Standard Series
    • 316SS
Guide Rod:
  • Standard Series
    • 316SS
