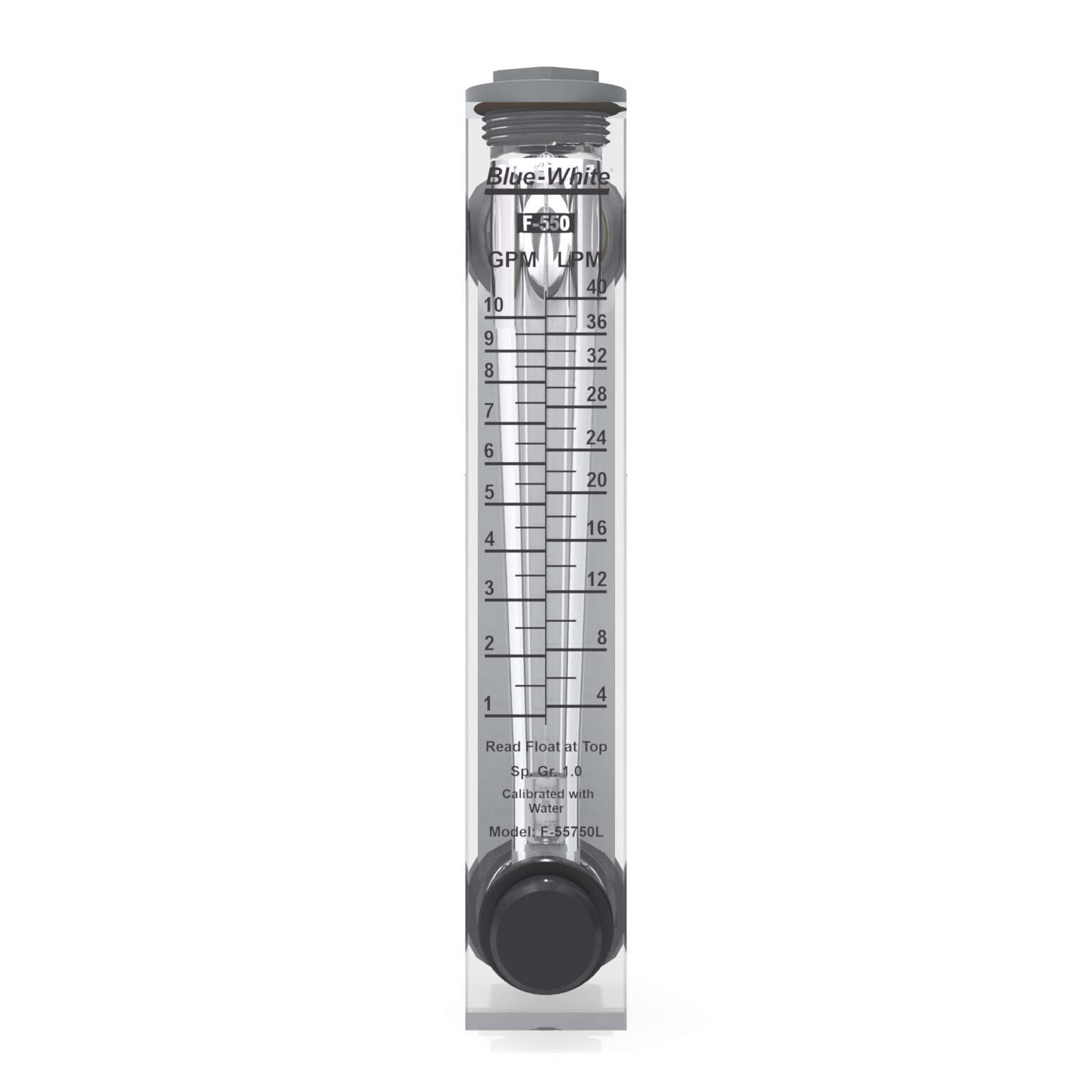

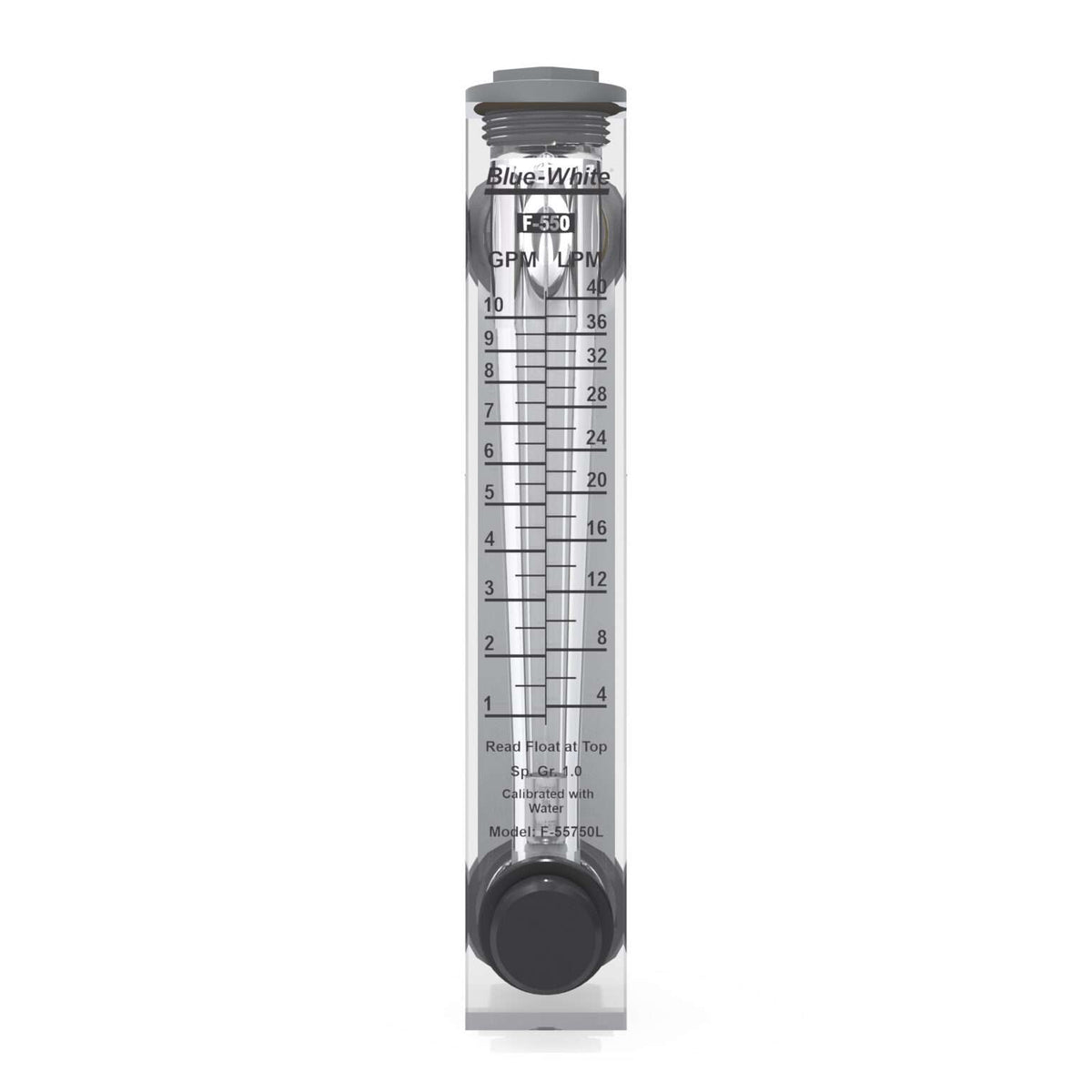

F-550
Features
- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)
- Bulkhead nuts attach directly to inside panel.
- Optional adjustable flow control: needle-type adjustment valve.
- Direct reading permanent scale.
- White back reflector for easy reading.
- 316 stainless, or PTFE floats and float guides.
Adapter Options:
- 1/4″, 3/8″, 3/4″, 1″ Male NPT
What’s Included:
- Flowmeter x1
- Instruction Manual
Specifications
Max. Working Pressure:
- 250 psig (17.2 bar) @ 70° F (21° C)
Max. Fluid Temperature:
- 200° F (93° C) @ 0 PSI
Full Scale Accuracy:
- +/- 5%
Meter Body Material:
- Machined Acrylic
Adapter Material:
- Polypropylene
Guide Rod Material:
- 316 SS
O-ring Material:
- FKM
Approx. Shipping Weight:
- 2 lb. (0.907 kg)
