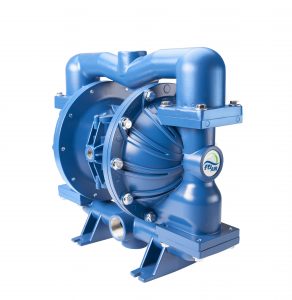

Finish Thompson AODD 1.5"
| Specifications | |||
| Suction & Discharge Size: | 1.5” x 1.5” | ||
| Porting Location: | Center Horizontal | ||
| Connection Types*: | FNPT, BSPT | ||
| Air Inlet & Air Exhaust Size: | 1/2” FNPT x ¾” FNPT | ||
| *Optional NPT or BSP threaded center port location in vertical position Optional ANSI/DIN/ISO flange (SS only) or 2” tri-clamp connection upgrade available upon request (SS only) |
|||
| Capabilities | |||
| Maximum Flow Rate: | 133 gpm (503 lpm) | ||
| Maximum Air Supply Pressure: | 120 psi (8.3 bar) | ||
| Displacement Per Stroke: | 0.24 gal (0.91 lit) | ||
| Minimum Air Inlet Pressure: | 10 psig (0.7 bar) | ||
| Maximum Particle Size: | 0.32” (8.2 mm) | ||
| Sound Pressure: | 77 dB(A) | ||
| Operating Temperature: | Determined by elastomers | ||
| Construction | |||
| Wetted Materials: | 316SS or Aluminum | ||
| Diaphragm Materials: | Neoprene, Santoprene™, FKM, EPDM, PTFE, Buna, Hytrel®, Polyurethane | ||
| Air Valve: | GFRPP, Aluminum | ||
| Ball Materials: | Neoprene, Buna, Santoprene™, FKM, EPDM, PTFE, 316SS | ||
| Seat Materials: | Aluminum, 316SS, PTFE, Hytrel®, Buna, Neoprene, FKM, EPDM, Santoprene™, Polyurethane | ||
| O-ring Materials | Neoprene, Buna, FKM, EPDM, PTFE, or FEP/FKM, Santoprene™, Polyurethane | ||
| Dimensions & Weights | ||||||
| 316 Stainless Steel | Aluminum | |||||
| Maximum Height: | 18-31/32” (482 mm) | 17-1/2” (445 mm) | ||||
| Maximum Width: | 19-7/16” (494 mm) | 19-7/16” (494 mm) | ||||
| Maximum Depth: | 11-13/32” (290 mm) | 11-13/32” (290 mm) | ||||
| Weight: | 98 lb (44.5 kg) | 52 lb (23.6 kg) | ||||
