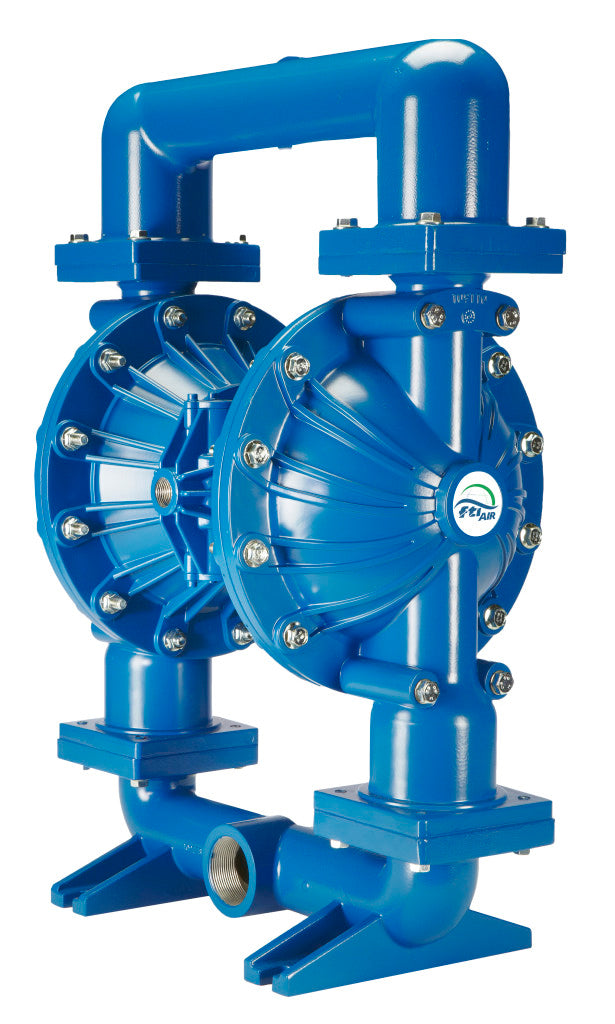

Finish Thompson AODD 2"
| Specifications | |
| Suction & Discharge Size: | 2” x 2” |
| Porting Location: | Center |
| Connection Types: | FNPT, BSPT, ANSI/DIN/ISO flange* |
| Air Inlet & Air Exhaust Size: | ¾” FNPT x ¾” FNPT |
| *ANSI/DIN/ISO flange connection available for SS models only | |
| Capabilities | ||||
| Maximum Flow Rate: | 156 gpm (590 lpm) | |||
| Maximum Air Supply Pressure: | 120 psi (8.3 bar) | |||
| Displacement Per Stroke: | 0.31 gal (1.2 lit) | |||
| Minimum Air Inlet Pressure: | 10 psig (0.7 bar) | |||
| Maximum Particle Size: | 0.35” (8.9 mm) | |||
| Sound Pressure: | 77 dB(A) | |||
| Operating Temperature: | Determined by elastomers | |||
| Construction | |||
| Wetted Materials: | 316SS or Aluminum | ||
| Diaphragm Materials: | Neoprene, Santoprene™, FKM, EPDM, PTFE, Buna, Hytrel®, or polyurethane | ||
| Air Valve: | GFRPP, Aluminum | ||
| Ball Materials: | Neoprene, Buna, Santoprene™, FKM, EPDM, or PTFE | ||
| Seat Materials: | Aluminum, 316SS, PTFE, Hytrel®, Buna, Neoprene, FKM, EPDM, Santoprene™, or polyurethane | ||
| O-ring Materials | Neoprene, Buna, FKM, EPDM, PTFE, or FEP/FKM | ||
| Dimensions & Weights | ||||||
| 316 Stainless Steel | Aluminum | |||||
| Maximum Height: | 30-3/32” (765 mm) | 28-7/8” (733 mm) | ||||
| Maximum Width: | 20-15/32” (520 mm) | 20-7/8” (530 mm) | ||||
| Maximum Depth: | 12-27/32” (326 mm) | 12-27/32” (326 mm) | ||||
| Weight: | 130 lb (59.9 kg) | 87 lb (39.5 kg) | ||||
