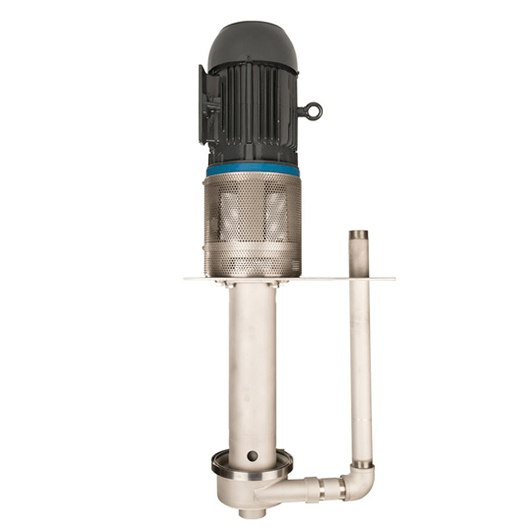

Finish Thompson AP Series AV6
| Suction Port Size | 2 in |
|---|---|
| Discharge Port Size | 1.5 in |
| Connection Types | NPT |
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 10 to 216 gpm | 2.27 to 39.5 m3/h |
| Maximum Head | 136.6 ft | 29.4 m |
| Power Range** | 2.8 to 6.9 hp | 1.2 to 3.1 kW |
| Type | Stainless Steel |
|---|---|
| Configuration | Vertical |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, or PTFE Encapsulated Silicone |
| Lower Bushing Materials | Carbon, FKM/SS, or EPDM/SS |
| Column Lengths | 24 in (61 cm), 36 in (91 cm), or 48 in (122 cm) |
