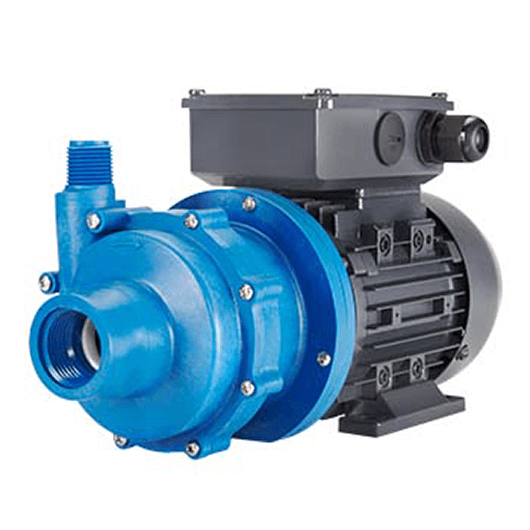

Finish Thompson DB11
| Suction Port Size | 2 in |
|---|---|
| Discharge Port Size | 1.5 in |
| Connection Types | NPT, BSP, Flange, or Union |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 90 psi (6.2 bar) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 4 to 116 gpm | 0.9 to 26.8 m3/h |
| Maximum Head | 74 ft | 23 m |
| Power Range** | 0.28 to 1.74 hp | 0.37 to 1.38 kW |
| *See Performance tab for individual impeller diameter capability **Based on 1.0 specific gravity |
||
| Type | Sealless Mag Drive |
|---|---|
| Configuration | Horizontal |
| Construction Materials | Polypropylene or PVDF |
| O-Ring Materials | FKM, EPDM, Simriz®, or Kalrez® |
| Bushing Materials | Carbon, PTFE, Ceramic, or SiC |
| Shaft Materials | Ceramic, Hastelloy® C, or SiC |
| Polypropylene | PVDF | |
|---|---|---|
| Maximum Temperature: | 180º F (82º C) | 220º F (104º C) |
