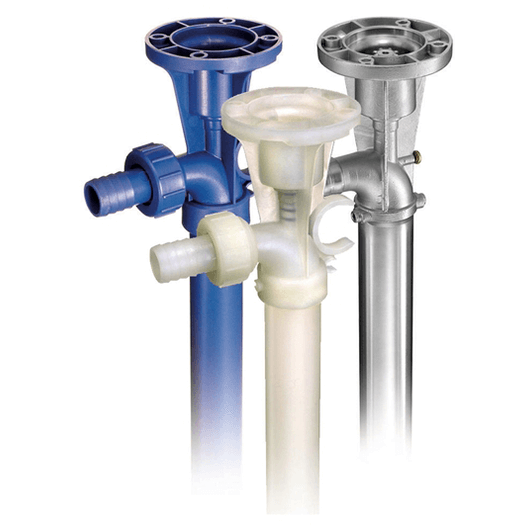

Finish Thompson Drum/Barrel Pump EFS
The EF Series pumps provide an economical choice for light duty transfer. An ideal replacement for hand pumps.
Features include:
- Polypropylene, pure polypropylene/PVDF, or 316 stainless steel tubes
- Dual speed adjustable motors
- Tubes interchangeable with motors
- Lightweight & economical
- Integral strainer
- Plastic models have built-in hose cord & clips
Applications
- Light acids and bases
- Solvents
- Sodium hypochlorite
- Cleaners
- Coolants
- DEF/AdBlue (diesel exhaust fluid)
| Available Lengths | 16, 27, 40, 48 in (41, 69, 102, 122 cm) |
|---|---|
| Tube Diameter | 1-1/4 in (3.2 cm) |
| Discharge Size | 3/4 in (1.91 cm) |
| Discharge Types | Hose barb |
| Hose Type | 3/4 in (1.91 cm) |
| Electric Motor | Air Motor | 12V Motor | |
|---|---|---|---|
| Maximum Flow | 17 gpm (64 lpm) | 15 gpm (57 lpm) | 14 gpm (53 lpm) |
| Maximum Head | 20 ft (6.1 m) | 17 ft (5.2 m) | 13 ft (4 m) |
| Maximum Specific Gravity | 1.6 | 1.6 | 1.6 |
| Maximum Viscosity | 300 cP | 300 cP | 100 cP |
| Tube Material | 316 stainless steel |
|---|---|
| Shaft Material | 316 stainless steel |
| O-ring Material | FKM |
| Impeller Material | ETFE |
| Maximum Temperature | 212º F (100º C) |
| Minimum Temperature | 0º F (-18º C) |
