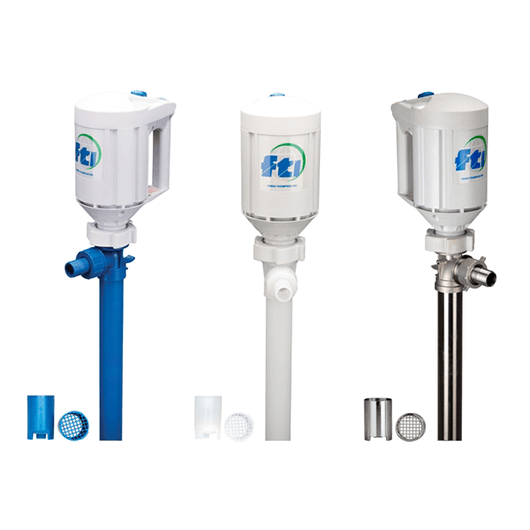

Finish Thompson Drum/Barrel Pump SFM
Couldn't load pickup availability
Need Parts for this product?
Call (225)-454-0860 now for support on replacement parts
Fast Shipping
100% secure payments
Industry leading quality
Ask an expert!
Dual impeller options provides either high flow or high head with 40mm tube diameter for smaller bung openings.
Featuring multiple material options and connections, the SF Series is designed for container-to-container transfer of acids, corrosives, and chemicals.
Features:
- Polypropylene (PP) tube
- Interchangeable with motors
- Integral strainer on high-flow versions
- Up to 1200 cP
- Built-in hose and cord clips
Applications
- Acids
- Bases
- Water treatment chemicals
- Cleaners
- Plating solutions
- Kidney dialysis solutions
- EF/AdBlue (diesel exhaust fluid)
| Available Lengths | 27, 40, 48, 54, 60, 72 in (69, 102, 122, 137, 152, 183 cm) |
|---|---|
| Tube Diameter | 1.6 in (4.0 cm) |
| Discharge Size | 1 in (2.54 cm) |
| Discharge Type | Hose barb |
| Hose Size | 1 in (2.54 cm) |
| High Flow Impeller | Electric Motor | Air Motor |
|---|---|---|
| Maximum Flow | 37 gpm (140 lpm) | 31 gpm (117 lpm) |
| Maximum Head | 50 ft (15 m) | 32 ft (10 m) |
| Maximum Specific Gravity | 1.84 | 2.0 |
| Maximum Viscosity | 1000 cP | 1200 cP |
| High Head Impeller | Electric Motor | Air Motor |
|---|---|---|
| Maximum Flow | 24 gpm (91 lpm) | 20 gpm (76 lpm) |
| Maximum Head | 83 ft (25 m) | 62 ft (19 m) |
| Maximum Specific Gravity | 2.0 | 2.0 |
| Maximum Viscosity | 1200 cP | 1200 cP |
| Tube Material | PP |
|---|---|
| Shaft Material | 316 stainless steel |
| O-ring Mateial | FKM |
| Impeller Material | PP |
| Maximum Temperature | 175º F (79º C) |
| Minimum Temperature | 35º F (1.7º C) |
