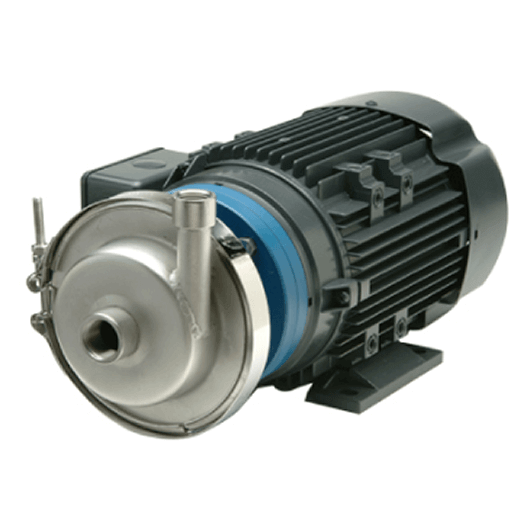

Finish Thompson Sealed Pumps AC4
|
Port Sizes (Suction x Discharge) & Connection Types |
3/4 x 1/2 NPT/BSPT 3/4 x 1/2 w/ Drain 3/4 x 1/2 Flange 1 x 1 Flange 1-1/2 x 3/4 Tri-clamp 1-1/2 x 1 Tri-clamp 3/4 x 1/2 Electro |
|---|---|
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 3 to 39.1 gpm | 0.68 to 7 m3/h |
| Maximum Head | 59.6 ft | 11.7 m |
| Power Range** | 0.25 to 1 hp | 0.1 to 0.21 kW |
| Type | Stainless Steel Mechanically Sealed |
|---|---|
| Configuration | Horizontal |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, Buna, or PTFE Encapsulated Silicone |
| Seal Type | Bellows Type 21, J103081 |
| Seal Materials | Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez® |
