Finish Thompson

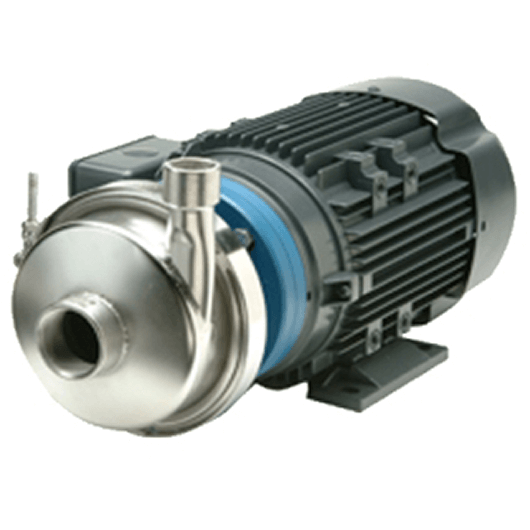

Finish Thompson Sealed Pumps AC5H

(0)
Call (225)-454-0860 to confirm stock
Call for pricing

Need Parts for this product?

Call (225)-454-0860 now for support on replacement parts

Fast Shipping
100% secure payments
Industry leading quality

Ask an expert!

Email (225)-454-0860
Port Sizes
(Suction x Discharge) &
Connection Types 		1/2 x 1/4 NPT threaded connections
1/2 x 1/4 BSP threaded connections
1/2 x 1/4 NPT electropolished threaded connections
1 in x 1 in ANSI #150 Flanges
1.5 in x 0.75 in Electropolished Tri-clamps
Maximum Specific Gravity up to 1.8
Maximum Working Pressure 100 psi (6.9 bar)
Maximum Temperature 300º F (149º C)
@3450 RPM @2900 RPM
Flow Range* 2 to 16.9 gpm 0.45 to 3.8 m3/h
Maximum Head 96 ft 29.2 m
Power Range** 0.41 to 0.57 hp 0.18 to 0.26kW

Type Stainless Steel Mechanically Sealed High Head
Configuration Horizontal
Construction Materials 316 Stainless Steel
O-Ring Materials FKM, EPDM, Buna, or PTFE Encapsulated Silicone
Seal Type Bellows Type 21
Seal Materials Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez®
