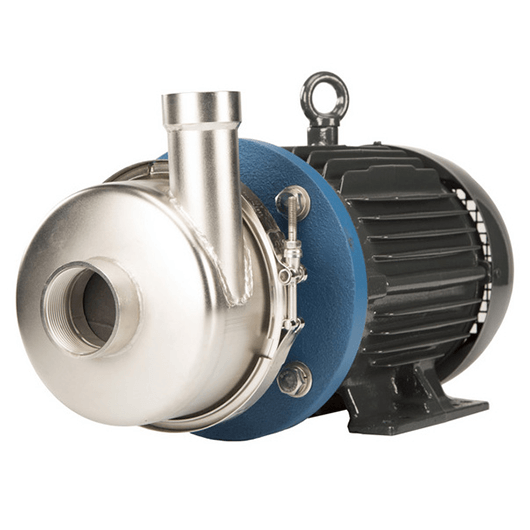

Finish Thompson Sealed Pumps AC6
|
Port Sizes (Suction x Discharge) & Connection Types |
1-1/2 x 1-1/4 FNPT 2 x 1-1/2 FNPT 1-1/2 x 1-1/4 FBSP 2 x 1-1/2 FBSP 2 x 1-1/2 Flange 1-1/2 x 1-1/4 Flange 2 x 2 Flange 1-1/2 x 1-1/2 Tri-clamp 2-1/2 x 1-1/2 Tri-clamp |
|---|---|
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 10 to 216 gpm | 2.27 to 39.5 m3/h |
| Maximum Head | 136.6 ft | 29.4 m |
| Power Range** | 2.8 to 6.9 hp | 1.2 to 3.1 kW |
| Type | Stainless Steel Mechanically Sealed |
|---|---|
| Configuration | Horizontal |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, Buna, or PTFE Encapsulated Silicone |
| Seal Type | Bellows Type 21 |
| Seal Materials | Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez® |
