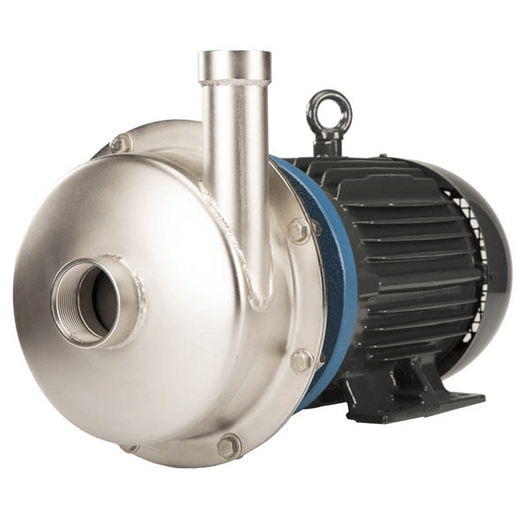

Finish Thompson Sealed Pumps AC8
Couldn't load pickup availability
Need Parts for this product?
Call (225)-454-0860 now for support on replacement parts
Fast Shipping
100% secure payments
Industry leading quality
Ask an expert!
|
Port Sizes (Suction x Discharge) & Connection Types |
2 in x 1-1/2 in NPT or BSP 2-1/2 in x 2 in NPT or BSP 2-1/2 in x 2 in ANSI #150 flanges 2 in x 1-1/2 in ANSI #150 flanges 2 in x 2 in ANSI #150 flanges 2-1/2 in x 1-1/2 in ANSI #150 flanges 3 in x 2 in ANSI #150 flanges 3 in x 3 in ANSI #150 flanges 2-1/2 in x 1-1/2 in electropolished tri-clamps |
|---|---|
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 120 psi (8.3 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 20 to 321.2 gpm | 4.54 to 58.3 m3/h |
| Maximum Head | 247 ft | 53.2 m |
| Power Range** | 5.5 to 15 hp | 1.8 to 9.1 kW |
| Type | Stainless Steel Mechanically Sealed |
|---|---|
| Configuration | Horizontal |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, Buna, or PTFE Encapsulated Silicone |
| Seal Type | Bellows Type 21 |
| Seal Materials | Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez® |
