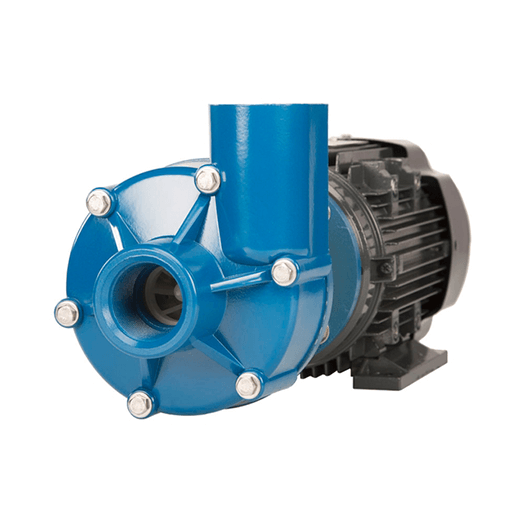

Finish Thompson Sealed Pumps GP11
| Suction Port Size | 1.5 in |
|---|---|
| Discharge Port Size | 1.5 in |
| Connection Types | NPT or BSP |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 35 psi (2.4 bar) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 10 to 126.4 gpm | 2.27 to 23.5 m3/h |
| Maximum Head | 81.9 ft | 17 m |
| Power Range** | 0.4 to 3.2 hp | 0.22 to 1.5 kW |
| Type | Mechanically Sealed |
|---|---|
| Configuration | Horizontal |
| Construction Materials | Polypropylene or PVDF |
| O-Ring Materials | FKM or EPDM |
| Seal Types | Bellows, Multispring, or Double |
| Rotating Face Materials | Carbon, GF PTFE, Siliconized Carbon or SiC |
| Stationary Face Materials: | High Purity Ceramic, SiC or Ni-Resist |
| Elastomer Materials | FKM, EPDM, or Kalrez® |
| Polypropylene | PVDF | |
|---|---|---|
| Maximum Temperature: | 180º F (82º C) | 220º F (104º C) |
