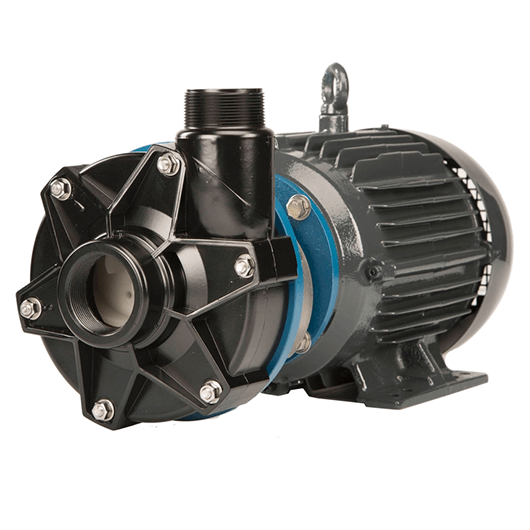

Finish Thompson Sealed Pumps GP22
Couldn't load pickup availability
Need Parts for this product?
Call (225)-454-0860 now for support on replacement parts
Fast Shipping
100% secure payments
Industry leading quality
Ask an expert!
| Suction Port Size | 2 in |
|---|---|
| Discharge Port Size | 2 in |
| Connection Types | NPT or BSP |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 55 psi (3.8 bar) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 15 to 200.9 gpm | 3.4 to 45.6 m3/h |
| Maximum Head | 123 ft | 26.3 m |
| Power Range** | 1.5 to 5.2 hp | 0.55 to 2.3 kW |
| Type | Mechanically Sealed |
|---|---|
| Configuration | Horizontal |
| Construction Materials | Polypropylene or PVDF |
| O-Ring Materials | FKM or EPDM |
| Seal Types | Bellows, Multispring, or Double |
| Rotating Face Materials | Carbon, GF PTFE, Siliconized Carbon or SiC |
| Stationary Face Materials: | High Purity Ceramic, SiC or Ni-Resist |
| Elastomer Materials | FKM, EPDM, or Kalrez® |
| Polypropylene | PVDF | |
|---|---|---|
| Maximum Temperature: | 180º F (82º C) | 220º F (104º C) |
