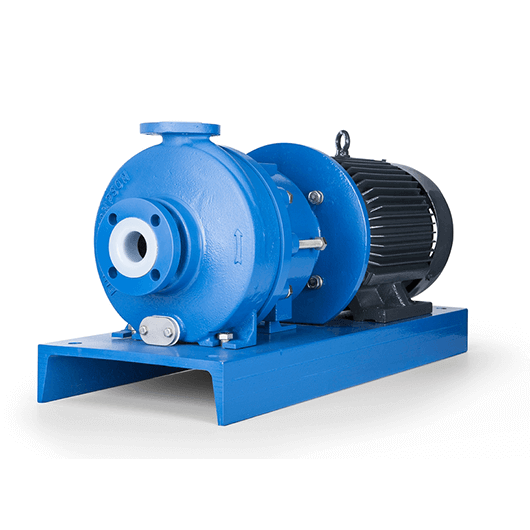

Finish Thompson ULTRAChem UC1518
| Suction Port Size | 1.5 in |
|---|---|
| Discharge Port Size | 1 in |
| Connection Types | ANSI 150# Flange, ISO/DIN/PN20 Flange |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 175 psi (12 bar) |
| Maximum Temperature | 250º F (121º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 5 to 181.3 gpm | 1.1 to 41.3 m3/h |
| Maximum Head | 313.6 ft | 65.6 m |
| Power Range** | 3.6 to 21.4 hp | 1.9 to 10.4 kW |
| Type | Heavy Duty Sealless Mag Drive |
|---|---|
| Configuration | Horizontal ANSI dimensional AA |
| Construction Materials | ETFE-lined ductile iron |
| O-Ring Materials | FKM, EPDM, Simriz®, Kalrez®, or Aflas® |
| Bushing Materials | Carbon, SiC, or Dri-Coat SiC |
| Shaft Materials | SiC or Dri-Coat SiC |
