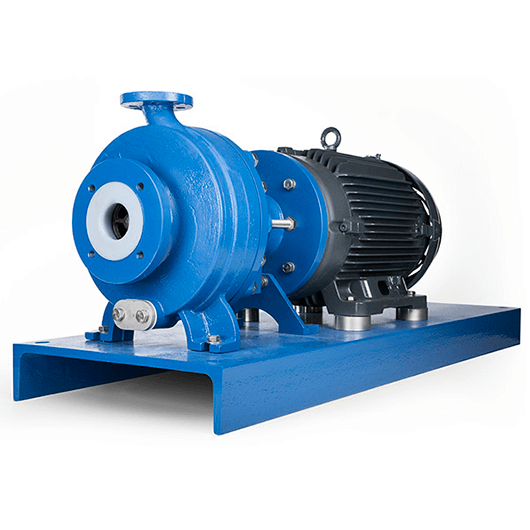

Finish Thompson ULTRAChem UC3110
| Suction Port Size | 2 in |
|---|---|
| Discharge Port Size | 1 in |
| Connection Types | ANSI 150# Flange, ANSI 300# Flange, or ISO PN40 Flange |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 300 psi (20.7 bar) |
| Maximum Temperature | 250º F (121º C) |
| @3500 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 15 to 201 gpm | 3.4 to 39.5 m3/h |
| Maximum Head | 492 ft | 102 m |
| Power Range** | 5.6 to 40.2 hp | 1.9 to 18.1 kW |
| Type | Heavy Duty Sealless Mag Drive |
|---|---|
| Configuration | Horizontal ANSI dimensional A05 |
| Construction Materials | ETFE-lined ductile iron |
| O-Ring Materials | FKM, EPDM, FEP/FKM, Simriz®, Kalrez®, or Aflas® |
| Bushing Materials | Carbon, SiC, or Dri-Coat SiC |
| Shaft Materials | SiC or Dri-Coat SiC |
