Finish Thompson

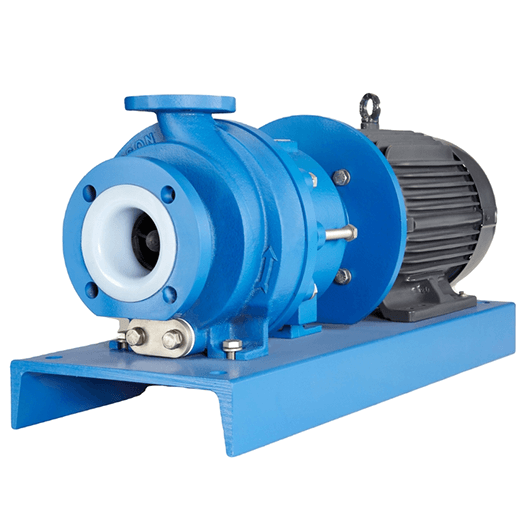

Finish Thompson ULTRAChem UC3156

(0)
Call (225)-454-0860 to confirm stock
Call for pricing

Need Parts for this product?

Call (225)-454-0860 now for support on replacement parts

Fast Shipping
100% secure payments
Industry leading quality

Ask an expert!

Email (225)-454-0860
Suction Port Size 3 in
Discharge Port Size 1.5 in
Connection Types ANSI/ISO/DIN/PN20 Flange
Maximum Specific Gravity over 1.8
Maximum Working Pressure 175 psi (12 bar)
Maximum Temperature 250º F (121º C)
@3450 RPM @2900 RPM
Flow Range* 5 to 320 gpm 1.1 to 60 m3/h
Maximum Head 161 ft 33 m
Power Range** 2.4 to 13.1  hp 1 to 6.0 kW

Type Heavy Duty Sealless Mag Drive
Configuration Horizontal ANSI dimensional —
Construction Materials ETFE-lined ductile iron
O-Ring Materials FKM, EPDM, Simriz®, Kalrez®, or Aflas®
Bushing Materials Carbon, SiC, or Dri-Coat SiC
Shaft Materials SiC or Dri-Coat SiC
