Finish Thompson

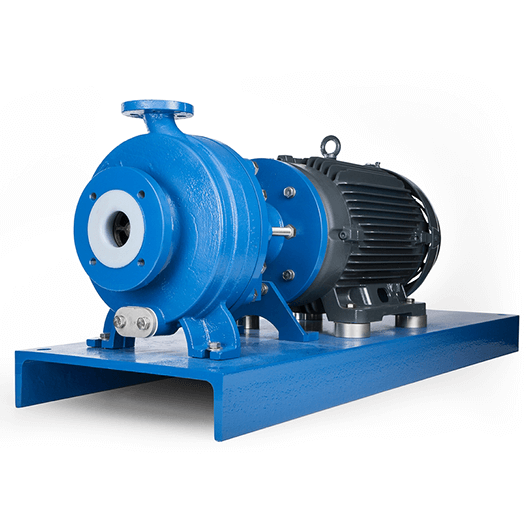

Finish Thompson ULTRAChem UC3158

(0)
Call (225)-454-0860 to confirm stock
Call for pricing

Need Parts for this product?

Call (225)-454-0860 now for support on replacement parts

Fast Shipping
100% secure payments
Industry leading quality

Ask an expert!

Email (225)-454-0860
Suction Port Size 3 in
Discharge Port Size 1.5 in
Connection Types ANSI 150# Flange, ANSI 300# Flange, or ISO PN40 Flange
Maximum Specific Gravity over 1.8
Maximum Working Pressure 300 psi (20.7 bar)
Maximum Temperature 250º F (121º C)
@3450 RPM @2900 RPM
Flow Range* 20 to 445 gpm 3.8 to 85 m3/h
Maximum Head 280 ft 59 m
Power Range** 5.7 to 34.3 hp 3.2 to 15.4 kW

Type Heavy Duty Sealless Mag Drive
Configuration Horizontal ANSI dimensional A50
Construction Materials ETFE-lined ductile iron
O-Ring Materials FKM, EPDM, FEP/FKM, Simriz®, Kalrez®, or Aflas®
Bushing Materials Carbon, SiC, or Dri-Coat SiC
Shaft Materials SiC or Dri-Coat SiC
