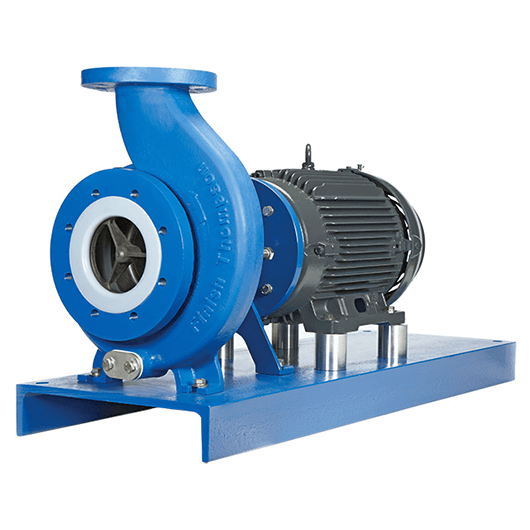

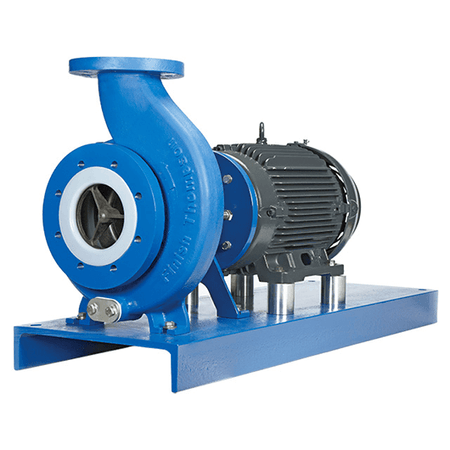

Finish Thompson ULTRAChem UC4310H
Couldn't load pickup availability
Need Parts for this product?
Call (225)-454-0860 now for support on replacement parts
Fast Shipping
100% secure payments
Industry leading quality
Ask an expert!
| Suction Port Size | 4 in |
|---|---|
| Discharge Port Size | 3 in |
| Connection Types | ANSI 150# Flange, ANSI 300# Flange, or ISO PN40 Flange |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 300 psi (20.7 bar) |
| Maximum Temperature | 250º F (121º C) |
| @1750 RPM | @1450 RPM | |
|---|---|---|
| Flow Range* | 75 to 1050 gpm | 11.4 to 239 m3/h |
| Maximum Head | 118 ft | 36 m |
| Power Range** | 4 to 27.1 hp | 1.7 to 11.8 kW |
| Type | Heavy Duty Sealless Mag Drive |
|---|---|
| Configuration | Horizontal ANSI dimensional A70 |
| Construction Materials | ETFE-lined ductile iron |
| O-Ring Materials | FKM, EPDM, FEP/FKM, Simriz®, Kalrez®, or Aflas® |
| Bushing Materials | Carbon, SiC, or Dri-Coat SiC |
| Shaft Materials | SiC or Dri-Coat SiC |
