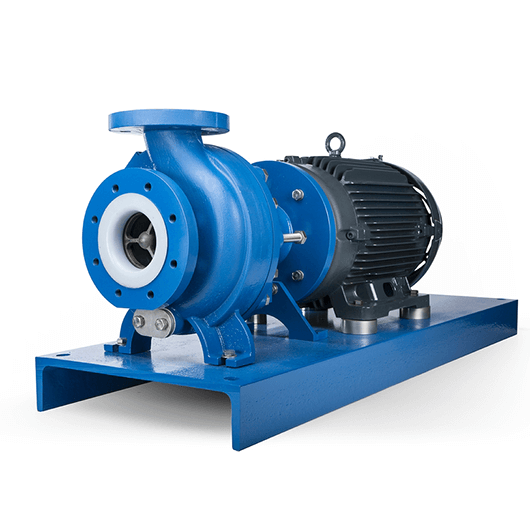

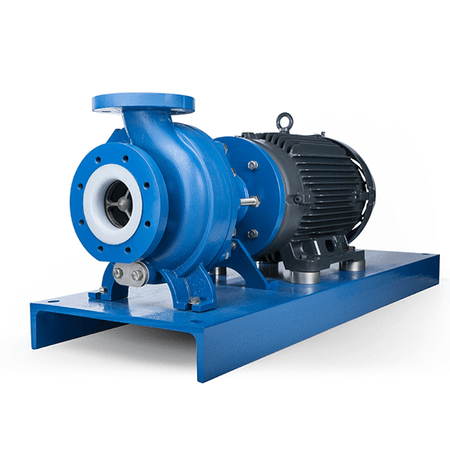

Finish Thompson ULTRAChem UC436
| Suction Port Size | 4 in |
|---|---|
| Discharge Port Size | 3 in |
| Connection Types | ANSI 150# Flange, ANSI 300# Flange, or ISO PN40 Flange |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 300 psi (20.7 bar) |
| Maximum Temperature | 250º F (121º C) |
| @3450 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 20 to 670 gpm | 3.8 to 152 m3/h |
| Maximum Head | 190 ft | 58 m |
| Power Range** | 11.7 to 26.3 hp | 3.2 to 15.4 kW |
| Type | Heavy Duty Sealless Mag Drive |
|---|---|
| Configuration | Horizontal ANSI dimensional — |
| Construction Materials | ETFE-lined ductile iron |
| O-Ring Materials | FKM, EPDM, FEP/FKM, Simriz®, Kalrez®, or Aflas® |
| Bushing Materials | Carbon, SiC, or Dri-Coat SiC |
| Shaft Materials | SiC or Dri-Coat SiC |
