Finish Thompson

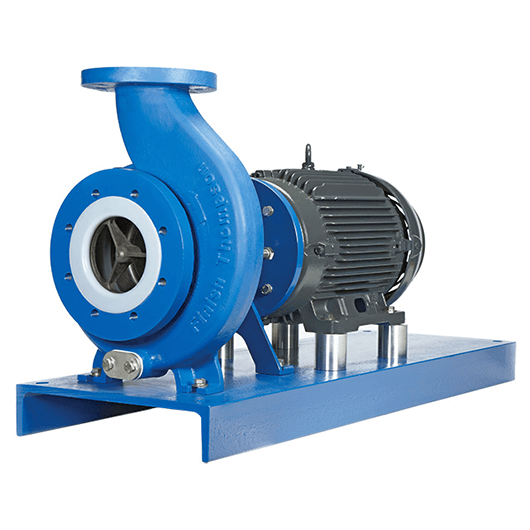

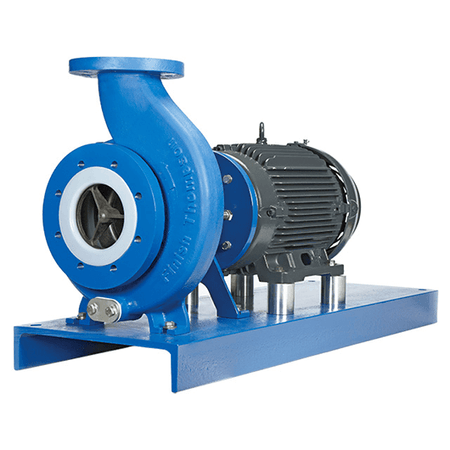

Finish Thompson ULTRAChem UC6410

(0)
Call (225)-454-0860 to confirm stock
Call for pricing

Need Parts for this product?

Call (225)-454-0860 now for support on replacement parts

Fast Shipping
100% secure payments
Industry leading quality

Ask an expert!

Email (225)-454-0860
Suction Port Size 6 in
Discharge Port Size 4 in
Connection Types ANSI 150# Flange, ANSI 300# Flange, or ISO PN40 Flange
Maximum Specific Gravity over 1.8
Maximum Working Pressure 300 psi (20.7 bar)
Maximum Temperature 250º F (121º C)
@1750 RPM @1450 RPM
Flow Range* 75 to 1450 gpm 11.4 to 329 m3/h
Maximum Head 112 ft 34 m
Power Range** 7.9 to 34.7 hp 3.5 to 15 kW

Type Heavy Duty Sealless Mag Drive
Configuration Horizontal ANSI dimensional A80
Construction Materials ETFE-lined ductile iron
O-Ring Materials FKM, EPDM, FEP/FKM, Simriz®, Kalrez®, or Aflas®
Bushing Materials Carbon, SiC, or Dri-Coat SiC
Shaft Materials SiC or Dri-Coat SiC
