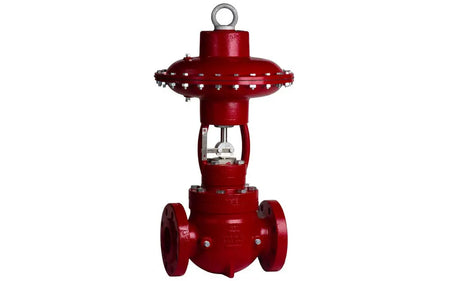

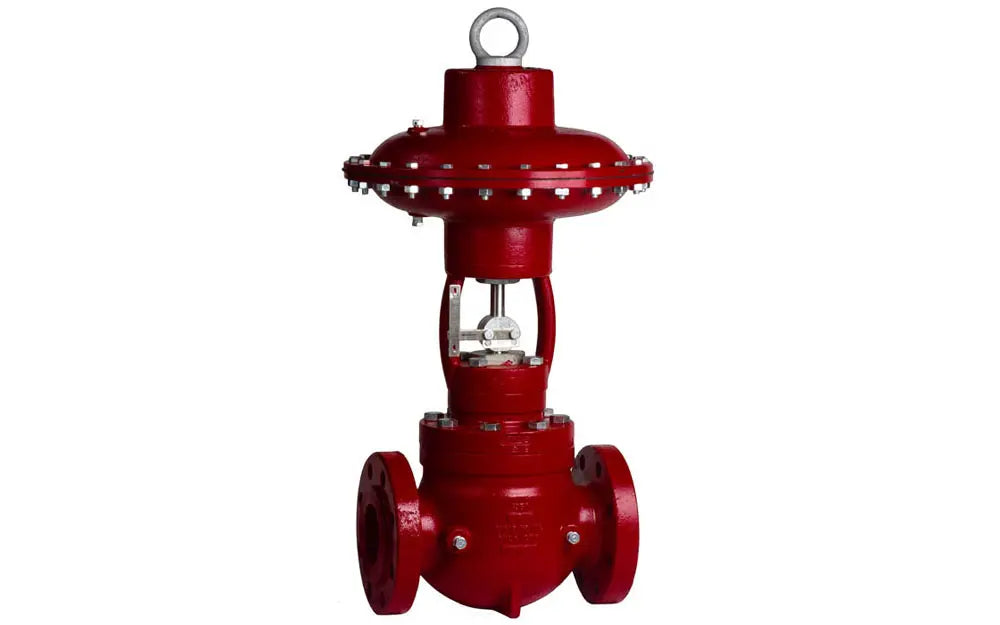

Control Valve/ Cage Guided : EFU
Couldn't load pickup availability
Need Parts for this product?
Call (225)-454-0860 now for support on replacement parts
Fast Shipping
100% secure payments
Industry leading quality
Ask an expert!
| Connection Size: | 3 " |
| Connection Type: | 600 RF |
| Body Style: | Through Body |
| Body Material: | Steel |
| NACE MR0175: | Option Available for NACE MR0175 compliance or certification |
| Trim Size: | 3 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 1480 psig |
| Actuator Spring Nominal Pressure: | 30 psig |
| Actuator Crack Open Pressure: | 6 psig |
| Actuator Full Open Pressure: | 30 psig |
| Max Supply Gas Pressure: | 45 psig |
| Fail Position: | Closed - Field Reversible |
| Operation: | Pneumatic |
| Catalog Page: | 01:20.1 |
| Face-to-Face Length: | 13.25 " |
| Max Cv: | 107 |
| Cf: | 0.75 |
| Weight: | 263 lbs |
